Festo
5162498

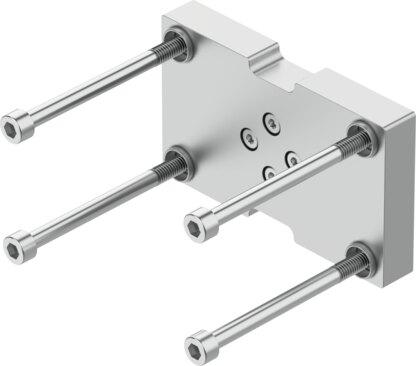

Adapter kit DHAA-G-E21-60-B8G-50
The Festo 5162498 industrial component features an anodized wrought aluminum alloy adapter plate with galvanized steel screws and steel centering elements. Weighing 310 g, this RoHS-compliant part supports any mounting position and utilizes through-holes, screws, and a centering sleeve for installation. It achieves a CRC of 2 for moderate corrosion stress and conforms to VDMA24364-B2-L LABS requirements. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 5162498
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 5162498.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Product weight
- 310 g
- Type of mounting
- With through-hole and screw | With centering sleeve
- Note on materials
- RoHS compliant
- Adapter plate material
- Wrought aluminum alloy, anodized
- Material of screws
- Galvanized steel
- Material of centering elements
- Steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 5162498. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
