Festo
5173733

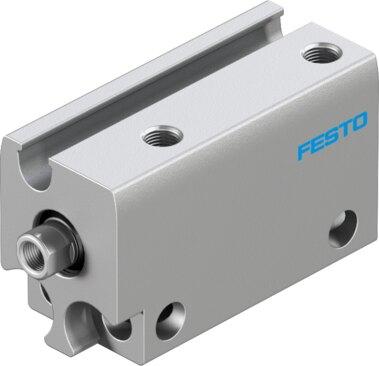

Compact cylinder ADN-S-6-10-I-A
This Festo industrial component, part number 5173733, is a double-acting unit featuring a 6 mm piston diameter, a 10 mm stroke, and a piston rod at one end with an internal thread. It operates on compressed air compliant with ISO 8573-1:2010 [7:4:4] at pressures from 0.2 MPa to 0.8 MPa (2 bar to 8 bar), allowing for optional oil lubrication that becomes required for continued use. The design incorporates position sensing via a proximity switch, unbuffered end positions with 0.006 J impact energy, an ambient temperature range of -10 °C to 60 °C, and Class 5 cleanroom suitability per ISO 14644-1. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 5173733
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 5173733.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 10 mm
- Piston diameter
- 6 mm
- Cushioning
- No cushioning
- Mounting position
- Any
- Mode of operation
- Double-acting
- Piston rod end
- Internal thread
- Structural design
- Piston | Piston rod
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 5 according to ISO 14644-1
- Ambient temperature
- -10 °C...60 °C
- Impact energy in the end positions
- 0.006 J
- Theoretical force at 6 bar, retracting
- 9.4 N
- Theoretical force at 6 bar, advancing
- 17 N
- Moving mass
- 2.4 g
- Product weight
- 15 g
- Type of mounting
- With through-hole
- Pneumatic connection
- M3
- Note on materials
- RoHS compliant
- Cover material
- Wrought aluminum alloy
- Material of dynamic seals
- NBR | TPE-U(PU)
- Housing material
- Wrought aluminum alloy | Anodized
- Piston rod material
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 5173733. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
