Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

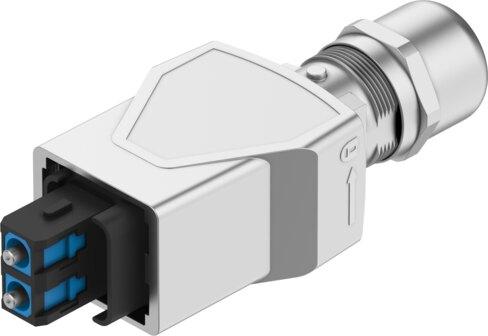

Reference imageConfirm configuration by manufacturer part number.
Festo
5195381
Plug NOCC-M-S-SCRJG2PP-C5-PN
The Festo 5195381 is an industrial component featuring an Ethernet and PROFINET FOC protocol interface with a straight cable outlet, supporting polymer fiber wire diameters from 0.98 mm to 1 mm at a 650 nm wavelength. This 84 g assembly conforms to IEC 61754-24, meets AIDA requirements, and is fire tested to UL94 V-0 with a contact durability rating of 100 cycles. Optical port 1 utilizes a square SC-RJ plug pattern with a 2.5 mm ferrule diameter, a push-pull mounting type with an interlock, and 2 occupied pins, while optical port 2 uses a lock nut requiring a 0.42 Nm tightening torque. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 5195381
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 5195381.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Conforms to standard
- IEC 61754-24
- Protocol
- Ethernet | PROFINET FOC
- Additional functions
- Meets AIDA requirements
- Contact durability
- 100
- Cable outlet
- Straight
- Product weight
- 84 g
- Optical port 1, connection type
- Plug
- Optical port 1, style
- Square
- Optical port 1, connection technology
- SC-RJ as per IEC 61754-24
- Optical port 1, number of pins/wires
- 2
- Optical connection 1, occupied pins/wires
- 2
- Optical port 1, plug pattern
- 00995772
- Optical port 1, type of mounting
- Push-pull with interlock to prevent unintentional pulling
- Optical port 1, ferrule diameter
- 2.5 mm
- Optical port 2, connection technology
- Lock nut
- Tightening torque
- 0.42 Nm
- Wire diameter
- 0.98 mm...1 mm
- Type of wire
- Polymer ber
- Wavelength
- 650 nm
- Fire tested
- UL94 V-0
- Cable diameter
- 5.5 mm...10 mm
- Degree of protection
- IP65 | IP67
- Note on degree of protection
- In mounted state
- Ambient temperature
- -25 °C...70 °C
- Storage temperature
- -40 °C...70 °C
- LABS (PWIS) conformity
- VDMA24364-A1-L
- Note on materials
- RoHS compliant
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- Housing material
- Die-cast zinc, nickel-plated
- Housing colour
- Silver
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 5195381. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
