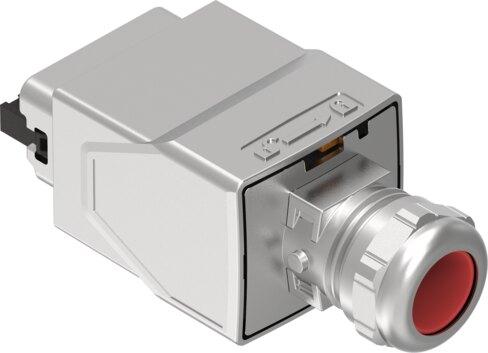

Name: Festo 5195383 Power supply socket NECU-M-PPG5PP-C1-PN
Brand: Festo

Power supply socket NECU-M-PPG5PP-C1-PN

The Festo 5195383 is an industrial component supporting the PROFINET protocol with c UL us-recognized (OL) certification under UL E328433, and it meets AIDA requirements. Weighing 109 g, this part features a 5-pin square socket electrical connection 1 with push-pull mounting and an interlock, paired with a spring-loaded terminal connection 2, a straight cable outlet, and a 16 A current rating at 40° C across a 0 V to 24 V DC operating voltage range. It accommodates a 9 mm to 13 mm cable diameter using a Pg13.5 hex AF22 cable fitting, a nominal conductor cross-section of 0.75 mm² to 2.5 mm² (AWG18 - 13), 4 kV surge resistance, and 100 contact durability. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 5195383
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 5195383.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Protocol: PROFINET
Certication: c UL us - recognized (OL)
Certicate issuing authority: UL E328433
Additional functions: Meets AIDA requirements
Contact durability: 100
Cable outlet: Straight
Product weight: 109 g
Electrical connection 1, design: Square
Electrical connection 1, connection type: Socket
Electrical connection 1, connection technology: Connection diagram PP, coding at pins 2 and 5
Electrical connection 1, number of pins/wires: 5
Electrical connection 1, occupied pins/wires: 5
Electrical connection 1, type of mounting: Push-pull with interlock to prevent unintentional pulling
Electrical connection 2, connection technology: Spring-loaded terminal
DC operating voltage range: 0 V...24 V
Current rating at 40° C: 16 A
Surge resistance: 4 kV
Cable tting: Pg13.5, hex, AF22
Cable diameter: 9 mm...13 mm
Nominal conductor cross section: 0.75 mm²...2.5 mm² | AWG18 - 13
Degree of protection: IP65 | IP67
Note on degree of protection: In mounted state
Ambient temperature: -40 °C...85 °C
Storage temperature: -40 °C...85 °C
LABS (PWIS) conformity: VDMA24364-B2-L
Note on materials: RoHS compliant
Fire tested: UL94 V-0
Contamination level: 3
Corrosion resistance class (CRC): 1 - Low corrosion stress
Housing material: Die-cast zinc, nickel-plated
