Name: Festo 5195384 Plug NECC-M-S-R3G8PP-HX-PN
Brand: Festo

Plug NECC-M-S-R3G8PP-HX-PN

The Festo 5195384 industrial component is an 8-pin RJ45 plug featuring a straight cable outlet, a square electrical connection design, and push-pull mounting with an interlock to prevent unintentional pulling. Operating at a nominal and range DC voltage of 50 V with a 1.75 A current rating at 40° C, this 90 g part supports Ethernet and PROFINET protocols, meets AIDA requirements, provides 360° shielding, and handles a surge resistance of 1500 V with Category 5 transmission characteristics according to ISO/IEC 11801 and TIA/EIA-568B. It is rated for 750 contact durability cycles, incorporates insulation-displacement contact technology for electrical connection 2, and features PELV protection against direct and indirect contact. Submit the exact part number, quantity, and application requirements to receive a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 5195384
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 5195384.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Protocol: Ethernet | PROFINET
Additional functions: Meets AIDA requirements
Contact durability: 750
Cable outlet: Straight
Product weight: 90 g
Electrical connection 1, design: Square
Electrical connection 1, connection type: Plug
Electrical connection 1, cable outlet: Straight

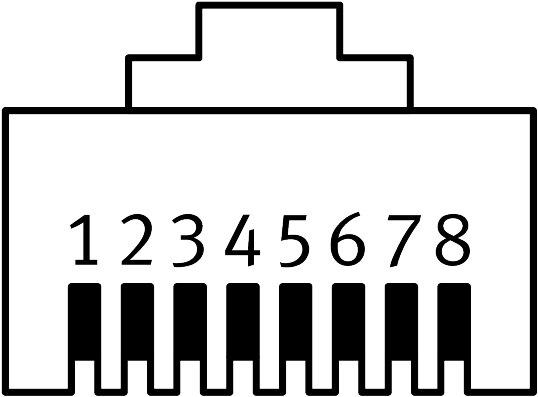

Electrical connection 1, connection technology: RJ45
Electrical connection 1, number of pins/wires: 8
Electrical connection 1, occupied pins/wires: 8
Electrical connection 1, type of mounting: Push-pull with interlock to prevent unintentional pulling
Electrical connection 2, connection technology: Insulation-displacement contact
DC operating voltage range: 50 V
Nominal operating voltage DC: 50 V
Current rating at 40° C: 1.75 A
Surge resistance: 1500 V
Shield: 360° possible
Transmission characteristics: Category 5 according to ISO/IEC 11801 | Category 5 according to TIA/EIA-568B
Protection against direct and indirect contact: PELV
Cable tting: Pg11 hex A/F 20
Cable diameter: 5.5 mm...10 mm
Wire diameter: 1.6 mm
Nominal conductor cross section: 0.25 mm²...0.32 mm² | AWG22 | AWG23
Information on port cross section: 0.25 – 0.32 mm² for conductor 1-wire
Degree of protection: IP65 | IP67
Note on degree of protection: In mounted state
Ambient temperature: -40 °C...70 °C
