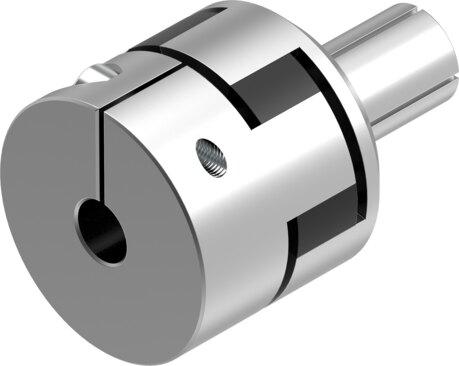

Reference imageConfirm configuration by manufacturer part number.
Festo
5200241
Coupling EAMD-42-40-12-16X25
The Festo 5200241 is an industrial component featuring a size 42 construction with a 12 mm diameter for holder 1 and a 16 mm diameter for holder 2. This RoHS compliant part delivers a nominal length of 40 mm, a transferable torque of 17 Nm, a mass moment of inertia of 39 kgmm², and supports a maximum rotational speed of 6000 rpm at a product weight of 198 g with any mounting position. Operating within an ambient and storage temperature range of -25 °C to 60 °C and 0 to 95% relative air humidity, it conforms to VDMA24364-B2-L LABS (PWIS) requirements. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 5200241
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 5200241.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Diameter of holder 1
- 12 mm
- Diameter of holder 2
- 16 mm
- Size
- 42
- Nominal length
- 40 mm
- Mounting position
- Any
- Max. rotational speed
- 6000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Ambient temperature
- -25 °C...60 °C
- Mass moment of inertia
- 39 kgmm²
- Transferable torque
- 17 Nm
- Product weight
- 198 g
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 5200241. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
