525101

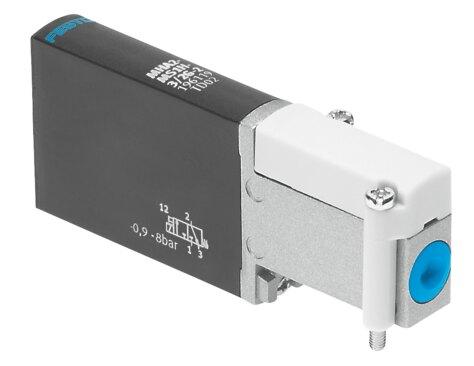

Name: Festo 525101 Air solenoid valve MHA2-MS1H-5/2-2
Brand: Festo

Air solenoid valve MHA2-MS1H-5/2-2

The Festo 525101 is a 10 mm wide electrical 5/2-way monostable industrial component featuring a pressure relief poppet valve design, soft sealing principle, and mechanical spring reset. Operating on 24V DC within a pressure range of -0.09 MPa to 0.8 MPa, this IP65-rated unit delivers a normal nominal flow rate of 90 l/min through a sub-base pneumatic working port and includes adjustable exhaust air function alongside a non-detenting manual override. It carries c UL us recognition, RCM compliance, and CE and UKCA markings per EMC and RoHS directives, with a 2 mm nominal width and 14 mm width dimension permitting a minimum grid dimension distance of 4 mm for any mounting position. Request a quote for part number 525101 by submitting your exact quantity and application requirements.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 525101
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 525101.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/2-way, monostable
Actuation type: Electrical
Width: 10 mm
Normal nominal ow rate (normalized to DIN 1343): 90 l/min
Pneumatic working port: Sub-base
Operating voltage: 24V DC
Operating pressure: -0.09 MPa...0.8 MPa | -0.9 bar...8 bar | -13.05 psi...116 psi
Structural design: Pressure relief poppet valve
Reset method: Mechanical spring
Degree of protection: IP65
Certication: RCM compliance mark | c UL us - recognized (OL)
CE marking (see declaration of conformity): As per EU EMC directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
Nominal width: 2 mm
Width dimension: 14 mm
Note on grid dimension: Minimum distance between the valves is 4 mm
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Manual override: Non-detenting
Type of control: directly
Flow direction: Non-reversible
Lap: Negative overlap
Reverse polarity protection: Bipolar
Additional functions: Spark arresting | Holding current reduction | Protective circuit
Max. switching frequency: 300 Hz

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 525101. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
