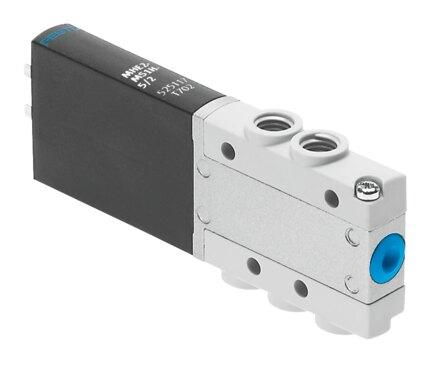

Reference imageConfirm configuration by manufacturer part number.
Festo
525113
Air solenoid valve MHE2-MS1H-5/2-M7
The Festo 525113 is a 5/2-way monostable electrical industrial component featuring a 10 mm width, a 90 l/min normal nominal flow rate, and an M7 pneumatic working port. This pressure relief poppet valve operates on 24V DC with an operating pressure range of -0.09 MPa to 0.8 MPa (-0.9 bar to 8 bar) and includes mechanical spring reset, soft sealing, adjustable exhaust air function, and non-detenting manual override. It provides IP65 protection, carries RCM and cUL us (OL) certifications, and complies with EU and UK EMC and RoHS directives. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 525113
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 525113.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Electrical
- Width
- 10 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 90 l/min
- Pneumatic working port
- M7
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...0.8 MPa | -0.9 bar...8 bar | -13.05 psi...116 psi
- Structural design
- Pressure relief poppet valve
- Reset method
- Mechanical spring
- Degree of protection
- IP65
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Nominal width
- 2 mm
- Width dimension
- 14 mm
- Note on grid dimension
- Minimum distance between the valves is 4 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Non-detenting
- Type of control
- directly
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- Reverse polarity protection
- Bipolar
- Additional functions
- Spark arresting | Holding current reduction | Protective circuit
- Max. switching frequency
- 300 Hz
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 525113. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
