Name: Festo 5251398 Motor cable NEBM-M40G15-EH-10-Q11N-R3LEG14
Brand: Festo

Motor cable NEBM-M40G15-EH-10-Q11N-R3LEG14

This Festo industrial component, part number 5251398, weighs 4.11 kg and is built in accordance with EN 61984 without a label holder. Electrical connection 1 features a field device side straight hybrid socket with an M40x1 connection technology, round design, snap-locking mounting, 15 pins with 12 occupied, and an operating range of 0 V to 850 V DC or 0 V to 630 V AC at a 40° C current rating of 31.9 A. Electrical connection 2 comprises a control side straight connector and cable featuring RJ45 and open end technology with 14 pins and 12 occupied wires. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 5251398
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 5251398.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Based on norm: EN 61984
Cable designation: Without label holder
Product weight: 4.11 kg

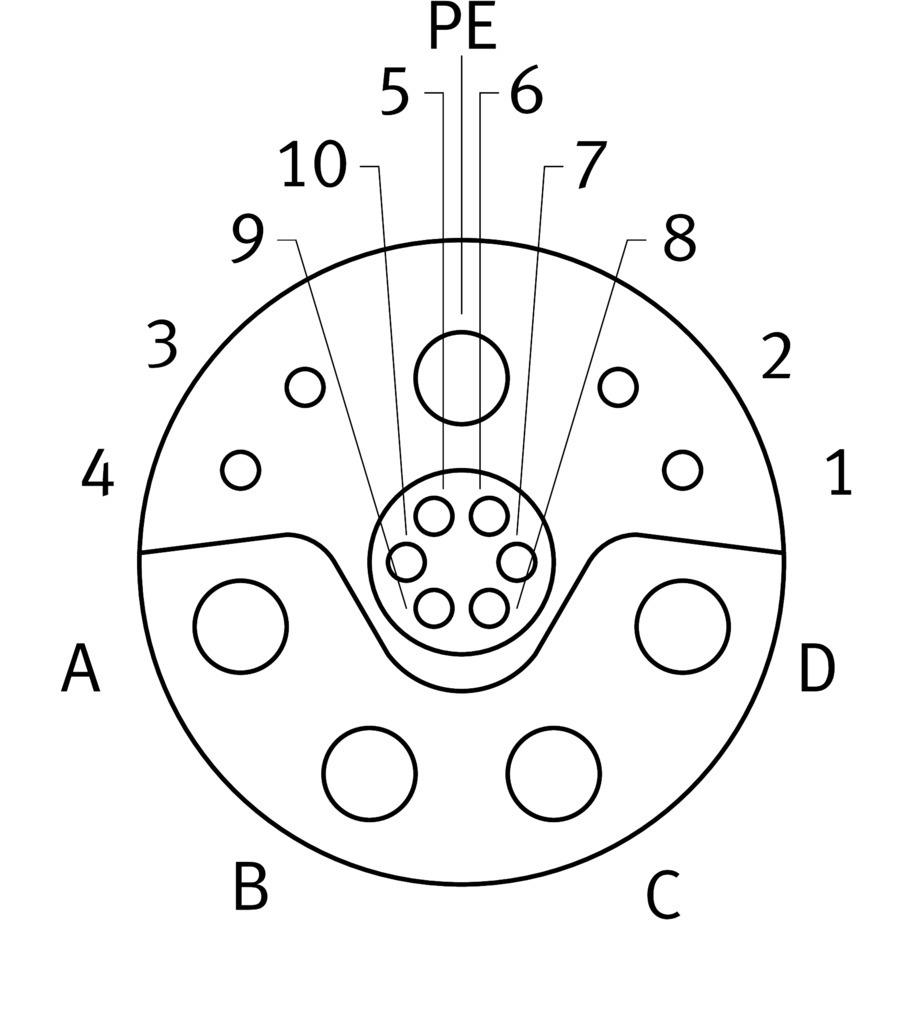

Electrical connection 1, function: Field device side
Electrical connection 1, design: Round
Electrical connection 1, connection type: Hybrid socket
Electrical connection 1, cable outlet: Straight
Electrical connection 1, connection technology: M40x1
Electrical connection 1, number of pins/wires: 15
Electrical connection 1, occupied pins/wires: 12
Electrical connection 1, type of mounting: Snap-locking
Electrical connection 2, function: Control side
Electrical connection 2, connection type: Connector and cable
Electrical connection 2, cable outlet: Straight
Electrical connection 2, connection technology: RJ45 and open end
Electrical connection 2, number of pins/wires: 14
Electrical connection 2, occupied pins/wires: 12
DC operating voltage range: 0 V...850 V
Operating voltage range AC: 0 V...630 V
Current rating at 40° C: 31.9 A
Surge resistance: 6 kV
Cable length: 10 m
Cable characteristic: Suitable for energy chains
Connector cable test conditions: Test conditions on request
Bending radius, xed cable installation: 65.6 mm
Bending radius, exible cable installation: 123 mm
Cable diameter: 16.4 mm
Cable diameter tolerance: ± 0.3 mm
Cable design: 4 x 4 mm² + 1 x (2 x 1.5 mm²) + 1 x (2 x 0.24 mm² + 2 x 2 x 0.15 mm²)
