Name: Festo 5251401 Motor cable NEBM-M40G15-EH- -Q12N-R3LEG14
Brand: Festo

Motor cable NEBM-M40G15-EH- -Q12N-R3LEG14

This Festo industrial component, part number 5251401, is built according to norm EN 61984 and features a DC operating voltage range of 0 V to 850 V alongside an AC operating voltage range of 0 V to 630 V. The unit supports a current rating of 40 A at 40° C, a surge resistance of 6 kV, and is designed without a label holder on the cable designation. Electrical connection 1 operates on the field device side with a round, straight hybrid socket utilizing M40x1 connection technology, 15 pins/wires with 12 occupied, and snap-locking mounting. Electrical connection 2 functions on the control side with a straight connector and cable using RJ45 and open end connection technology, comprising 14 pins/wires with 12 occupied. Submit the exact part number, quantity, and application requirements to receive a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 5251401
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 5251401.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Based on norm: EN 61984
Cable designation: Without label holder

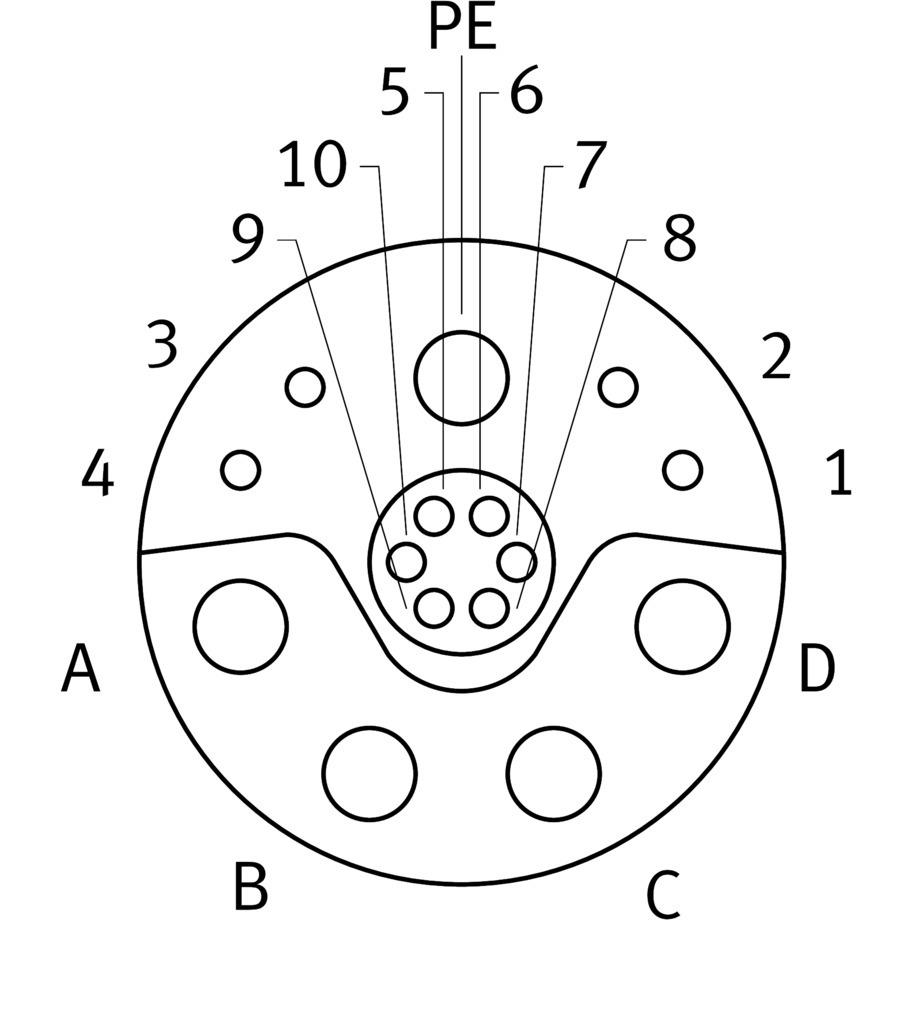

Electrical connection 1, function: Field device side
Electrical connection 1, design: Round
Electrical connection 1, connection type: Hybrid socket
Electrical connection 1, cable outlet: Straight
Electrical connection 1, connection technology: M40x1
Electrical connection 1, number of pins/wires: 15
Electrical connection 1, occupied pins/wires: 12
Electrical connection 1, type of mounting: Snap-locking
Electrical connection 2, function: Control side
Electrical connection 2, connection type: Connector and cable
Electrical connection 2, cable outlet: Straight
Electrical connection 2, connection technology: RJ45 and open end
Electrical connection 2, number of pins/wires: 14
Electrical connection 2, occupied pins/wires: 12
DC operating voltage range: 0 V...850 V
Operating voltage range AC: 0 V...630 V
Current rating at 40° C: 40 A
Surge resistance: 6 kV
Cable length: 0.5 m...100 m
Cable characteristic: Suitable for energy chains
Connector cable test conditions: Test conditions on request
Bending radius, xed cable installation: 74.8 mm
Bending radius, exible cable installation: 140.25 mm
Cable diameter: 18.7 mm
Cable diameter tolerance: ± 0.3 mm
Cable design: 4 x 6 mm² + 1 x (2 x 1.5 mm²) + 1 x (2 x 0.24 mm² + 2 x 2 x 0.15 mm²)
Wire ends: Wire ferrule
