Festo
5251404

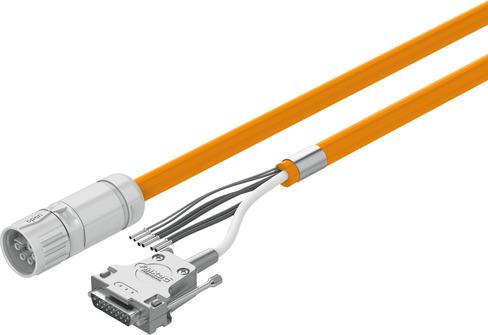

Motor cable NEBM-M40G15-EH- -Q11N-S1LEG21
The Festo part number 5251404 is an industrial component built in accordance with the EN 61984 norm, featuring a straight field device end with a round hybrid socket M40x1 connection technology, snap-locking mounting, 15 pins with 12 occupied, and without a label holder. Its control side utilizes plugs and cables with a straight cable outlet, a Sub-D and open end connection technology, 21 pins, and 12 occupied pins. This component supports a DC operating voltage range of 0 V to 850 V, an AC operating voltage range of 0 V to 630 V, a current rating of 31.9 A at 40° C, and a surge resistance of 6 kV. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 5251404
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 5251404.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 61984
- Cable designation
- Without label holder
- Electrical connection 1, function
- Field device end
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Hybrid socket
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- M40x1
- Electrical connection 1, number of pins/wires
- 15
- Electrical connection 1, occupied pins/wires
- 12
- Electrical connection 1, type of mounting
- Snap-locking
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- Plugs and cables
- Electrical connection 2, cable outlet
- Straight
- Electrical connection 2, connection technology
- Sub-D and open end
- Electrical connection 2, number of pins/wires
- 21
- Electrical connection 2, occupied pins/wires
- 12
- DC operating voltage range
- 0 V...850 V
- Operating voltage range AC
- 0 V...630 V
- Current rating at 40° C
- 31.9 A
- Surge resistance
- 6 kV
- Cable length
- 0.5 m...100 m
- Cable characteristic
- Suitable for energy chains
- Connector cable test conditions
- Test conditions on request
- Bending radius, fixed cable installation
- 65.6 mm
- Bending radius, flexible cable installation
- 123 mm
- Cable diameter
- 16.4 mm
- Cable diameter tolerance
- ± 0.3 mm
- Cable design
- 4 x 4 mm² + 1 x (2 x 1.5 mm²) + 1 x (2 x 0.24 mm² + 2 x 2 x 0.15 mm²)
- Wire ends
- Cable end sleeve
- Degree of protection
- IP67
- Note on degree of protection
- Depending on manifold block
