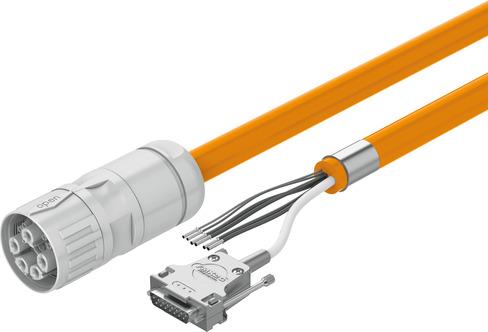

Reference imageConfirm configuration by manufacturer part number.
Festo
5251405
Motor cable NEBM-M40G15-EH- -Q12N-S1LEG21
The Festo 5251405 is an industrial component built to EN 61984 norms, featuring a field device end with a straight M40x1 hybrid socket connection technology, snap-locking mounting, and 15 pins with 12 occupied. Its control side utilizes plugs and cables with a straight Sub-D and open end configuration comprising 21 pins and 12 occupied wires, operating within a DC range of 0 V to 850 V and an AC range of 0 V to 630 V. This unit handles a current rating of 40 A at 40° C and provides a surge resistance of 6 kV without a cable designation label holder. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 5251405
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 5251405.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 61984
- Cable designation
- Without label holder
- Electrical connection 1, function
- Field device end
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Hybrid socket
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- M40x1
- Electrical connection 1, number of pins/wires
- 15
- Electrical connection 1, occupied pins/wires
- 12
- Electrical connection 1, type of mounting
- Snap-locking
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- Plugs and cables
- Electrical connection 2, cable outlet
- Straight
- Electrical connection 2, connection technology
- Sub-D and open end
- Electrical connection 2, number of pins/wires
- 21
- Electrical connection 2, occupied pins/wires
- 12
- DC operating voltage range
- 0 V...850 V
- Operating voltage range AC
- 0 V...630 V
- Current rating at 40° C
- 40 A
- Surge resistance
- 6 kV
- Cable length
- 0.5 m...100 m
- Cable characteristic
- Suitable for energy chains
- Connector cable test conditions
- Test conditions on request
- Bending radius, fixed cable installation
- 74.8 mm
- Bending radius, flexible cable installation
- 140.25 mm
- Cable diameter
- 18.7 mm
- Cable diameter tolerance
- ± 0.3 mm
- Cable design
- 4 x 6 mm² + 1 x (2 x 1.5 mm²) + 1 x (2 x 0.24 mm² + 2 x 2 x 0.15 mm²)
- Wire ends
- Cable end sleeve
- Degree of protection
- IP67
- Note on degree of protection
- Depending on manifold block
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 5251405. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
