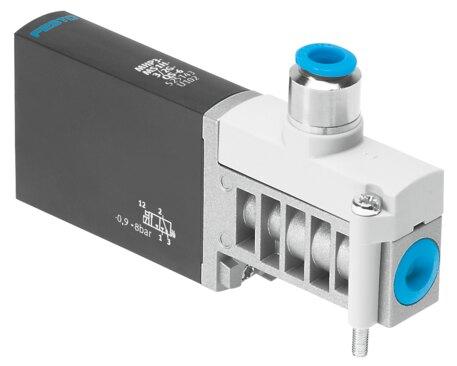

Name: Festo 525142 Air solenoid valve MHP3-M1H-3/2G-QS-6
Brand: Festo

Air solenoid valve MHP3-M1H-3/2G-QS-6

The Festo 525142 is a 3/2-way closed, monostable industrial component utilizing a direct electrical actuation type and a pressure relief poppet valve structural design. Featuring an operating voltage of 24V DC, a nominal width of 3 mm, and an operating pressure range of -0.09 MPa to 0.8 MPa, this unit delivers a normal nominal flow rate of 200 l/min through QS-6 pneumatic working ports. It incorporates soft sealing, a mechanical spring reset method, non-detenting manual override, and adjustable exhaust air function with IP65 degree of protection and c UL us recognition. Submit the exact part number, quantity, and application requirements for a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 525142
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 525142.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 3/2-way, closed, monostable
Actuation type: Electrical
Width: 14 mm
Normal nominal ow rate (normalized to DIN 1343): 200 l/min
Pneumatic working port: QS-6
Operating voltage: 24V DC
Operating pressure: -0.09 MPa...0.8 MPa | -0.9 bar...8 bar | -13.05 psi...116 psi
Structural design: Pressure relief poppet valve
Reset method: Mechanical spring
Degree of protection: IP65
Certication: c UL us - recognized (OL)
Nominal width: 3 mm
Width dimension: 19 mm
Note on grid dimension: Minimum distance between the valves is 5 mm
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Manual override: Non-detenting
Type of control: directly
Flow direction: Reversible with restrictions
Lap: Negative overlap
Operating pressure, reversible: -0.09 MPa...0.1 MPa | -0.9 bar...1 bar | -13.05 psi...14.5 psi
Max. switching frequency: 130 Hz
Switching time oﬀ: 4.5 ms
On switching time: 8.3 ms
Duty cycle: 100%
Coil characteristics: 24 V DC: 3.7 W
Permissible voltage uctuations: +/- 10%
