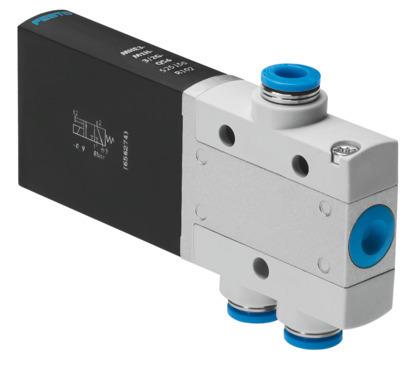

Reference imageConfirm configuration by manufacturer part number.
Festo
525150
Air solenoid valve MHE3-M1H-3/2G-QS-6
The Festo 525150 is a 14 mm wide, electrically actuated 3/2-way closed monostable industrial component featuring a pressure relief poppet valve structural design and soft sealing principle. Operating at 24V DC across a pressure range of -0.09 MPa to 0.8 MPa, this direct-controlled unit delivers a normal nominal flow rate of 200 l/min through QS-6 pneumatic working ports with an adjustable exhaust air function and mechanical spring reset. The assembly includes an IP65 degree of protection, c UL us recognition, a non-detenting manual override, and a nominal width of 3 mm with a minimum grid dimension distance of 5 mm for flexible mounting in any position. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 525150
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 525150.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, closed, monostable
- Actuation type
- Electrical
- Width
- 14 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 200 l/min
- Pneumatic working port
- QS-6
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...0.8 MPa | -0.9 bar...8 bar | -13.05 psi...116 psi
- Structural design
- Pressure relief poppet valve
- Reset method
- Mechanical spring
- Degree of protection
- IP65
- Certication
- c UL us - recognized (OL)
- Nominal width
- 3 mm
- Width dimension
- 19 mm
- Note on grid dimension
- Minimum distance between the valves is 5 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Non-detenting
- Type of control
- directly
- Flow direction
- Reversible with restrictions
- Lap
- Negative overlap
- Operating pressure, reversible
- -0.09 MPa...0.1 MPa | -0.9 bar...1 bar | -13.05 psi...14.5 psi
- Max. switching frequency
- 130 Hz
- Switching time off
- 4.5 ms
- On switching time
- 8.3 ms
- Duty cycle
- 100%
- Coil characteristics
- 24 V DC: 3.7 W
- Permissible voltage uctuations
- +/- 10%
