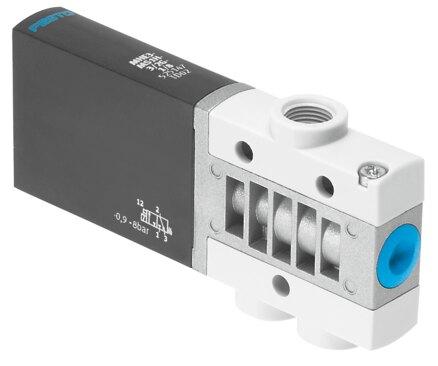

Reference imageConfirm configuration by manufacturer part number.
Festo
525167
Air solenoid valve MHE3-MS1H-3/2O-1/8
The Festo part number 525167 is a 14 mm wide, electrical 3/2-way monostable open pressure relief poppet valve featuring a mechanical spring reset and a nominal width of 3 mm. Operating at 24V DC within a pressure range of -0.09 MPa to 0.8 MPa (-0.9 bar to 8 bar, -13.05 psi to 116 psi), it delivers a normal nominal flow rate of 200 l/min through G1/8 pneumatic working ports. This IP65-rated component includes an adjustable exhaust air function, soft sealing principle, non-detenting manual override, and any mounting position, backed by RCM, c UL us, CE, and UKCA certifications. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 525167
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 525167.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, monostable, open
- Actuation type
- Electrical
- Width
- 14 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 200 l/min
- Pneumatic working port
- G1/8
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...0.8 MPa | -0.9 bar...8 bar | -13.05 psi...116 psi
- Structural design
- Pressure relief poppet valve
- Reset method
- Mechanical spring
- Degree of protection
- IP65
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Nominal width
- 3 mm
- Width dimension
- 19 mm
- Note on grid dimension
- Minimum distance between the valves is 5 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Non-detenting
- Type of control
- directly
- Flow direction
- Reversible with restrictions
- Lap
- Negative overlap
- Reverse polarity protection
- Bipolar
- Additional functions
- Spark arresting | Holding current reduction | Protective circuit
- Operating pressure, reversible
- -0.09 MPa...0.1 MPa | -0.9 bar...1 bar
