Name: Festo 525170 Air solenoid valve MHE3-M1H-3/2O-QS-6
Brand: Festo

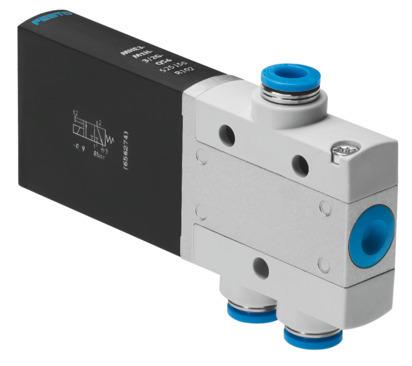

Air solenoid valve MHE3-M1H-3/2O-QS-6

The Festo part number 525170 is a 14 mm wide, 3/2-way monostable open electrical industrial component utilizing a pressure relief poppet valve structural design with direct control and soft sealing. This device operates at 24V DC within an operating pressure range of -0.09 MPa to 0.8 MPa (-0.9 bar to 8 bar or -13.05 psi to 116 psi), delivering a normal nominal flow rate of 200 l/min through a QS-6 pneumatic working port with a 3 mm nominal width. Featuring IP65 degree of protection, c UL us recognition, mechanical spring reset, non-detenting manual override, and adjustable exhaust air function, it supports any mounting position with a 19 mm width dimension and a minimum grid dimension distance of 5 mm. Submit the exact part number, quantity, and application requirements to receive a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 525170
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 525170.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 3/2-way, monostable, open
Actuation type: Electrical
Width: 14 mm
Normal nominal ow rate (normalized to DIN 1343): 200 l/min
Pneumatic working port: QS-6
Operating voltage: 24V DC
Operating pressure: -0.09 MPa...0.8 MPa | -0.9 bar...8 bar | -13.05 psi...116 psi
Structural design: Pressure relief poppet valve
Reset method: Mechanical spring
Degree of protection: IP65
Certication: c UL us - recognized (OL)
Nominal width: 3 mm
Width dimension: 19 mm
Note on grid dimension: Minimum distance between the valves is 5 mm
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Manual override: Non-detenting
Type of control: directly
Flow direction: Reversible with restrictions
Lap: Negative overlap
Operating pressure, reversible: -0.09 MPa...0.1 MPa | -0.9 bar...1 bar | -13.05 psi...14.5 psi
Max. switching frequency: 130 Hz
Switching time oﬀ: 4.5 ms
On switching time: 8.3 ms
Duty cycle: 100%
Coil characteristics: 24 V DC: 3.7 W
Permissible voltage uctuations: +/- 10%

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 525170. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
