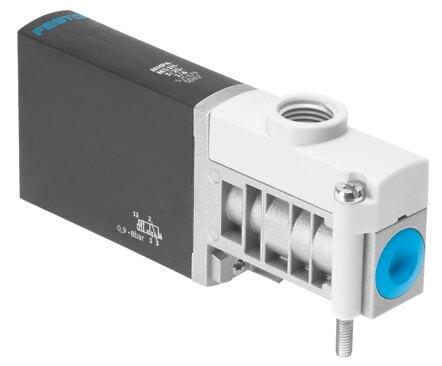

Reference imageConfirm configuration by manufacturer part number.
Festo
525198
Air solenoid valve MHP4-M1H-3/2O-1/4
The Festo 525198 is an 18 mm wide electrical industrial component featuring a 3/2-way monostable open valve function with direct control and a pressure relief poppet valve structural design. It operates at 24V DC across an operating pressure range of -0.09 MPa to 0.8 MPa (-0.9 bar to 8 bar, -13.05 psi to 116 psi) with a normal nominal flow rate of 400 l/min and a G1/4 pneumatic working port. Constructed with soft sealing and an IP65 degree of protection, the unit includes mechanical spring reset, an adjustable exhaust air function, non-detenting manual override, and c UL us recognition. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 525198
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 525198.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, monostable, open
- Actuation type
- Electrical
- Width
- 18 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 400 l/min
- Pneumatic working port
- G1/4
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...0.8 MPa | -0.9 bar...8 bar | -13.05 psi...116 psi
- Structural design
- Pressure relief poppet valve
- Reset method
- Mechanical spring
- Degree of protection
- IP65
- Certication
- c UL us - recognized (OL)
- Nominal width
- 4 mm
- Width dimension
- 24 mm
- Note on grid dimension
- Minimum distance between the valves is 6 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Non-detenting
- Type of control
- directly
- Flow direction
- Reversible with restrictions
- Lap
- Negative overlap
- Operating pressure, reversible
- -0.09 MPa...0.1 MPa | -0.9 bar...1 bar | -13.05 psi...14.5 psi
- Max. switching frequency
- 120 Hz
- Switching time off
- 5 ms
- On switching time
- 10.5 ms
- Duty cycle
- 100%
- Coil characteristics
- 24 V DC: 5.6 W
- Permissible voltage uctuations
- +/- 10%
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 525198. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
