525210

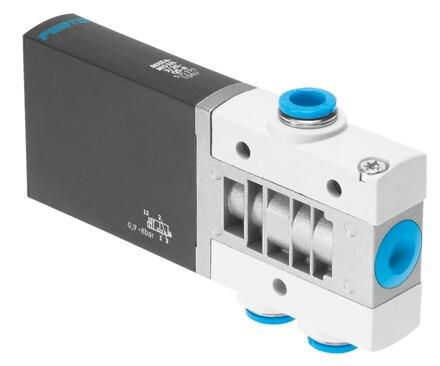

Name: Festo 525210 Air solenoid valve MHE4-M1H-3/2O-QS-8
Brand: Festo

Air solenoid valve MHE4-M1H-3/2O-QS-8

The Festo 525210 is a 3/2-way monostable open industrial component featuring a pressure relief poppet valve structural design with direct electrical actuation and a mechanical spring reset. Operating on 24V DC within a pressure range of -0.09 MPa to 0.8 MPa (-0.9 bar to 8 bar, -13.05 psi to 116 psi), this unit delivers a normal nominal flow rate of 400 l/min through a QS-8 pneumatic working port and a 4 mm nominal width. The IP65-rated assembly includes soft sealing, an adjustable exhaust air function, a non-detenting manual override, and c UL us recognition (OL). Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 525210
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 525210.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 3/2-way, monostable, open
Actuation type: Electrical
Width: 18 mm
Normal nominal ow rate (normalized to DIN 1343): 400 l/min
Pneumatic working port: QS-8
Operating voltage: 24V DC
Operating pressure: -0.09 MPa...0.8 MPa | -0.9 bar...8 bar | -13.05 psi...116 psi
Structural design: Pressure relief poppet valve
Reset method: Mechanical spring
Degree of protection: IP65
Certication: c UL us - recognized (OL)
Nominal width: 4 mm
Width dimension: 24 mm
Note on grid dimension: Minimum distance between the valves is 6 mm
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Manual override: Non-detenting
Type of control: directly
Flow direction: Reversible with restrictions
Lap: Negative overlap
Operating pressure, reversible: -0.09 MPa...0.1 MPa | -0.9 bar...1 bar | -13.05 psi...14.5 psi
Max. switching frequency: 120 Hz
Switching time oﬀ: 5 ms
On switching time: 10.5 ms
Duty cycle: 100%
Coil characteristics: 24 V DC: 5.6 W
Permissible voltage uctuations: +/- 10%

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 525210. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
