525214

Name: Festo 525214 Sub-base MHA3-AS-3-1/8
Brand: Festo

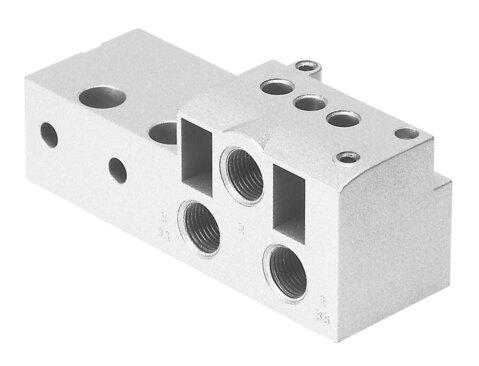

Sub-base MHA3-AS-3-1/8

The Festo part number 525214 is an industrial component featuring a die-cast zinc sub-base designed with a through-hole mounting type and internal thread pneumatic valve mounting. It provides a corrosion resistance class of CRC 2 for moderate corrosion stress and conforms to VDMA24364-B1/B2-L LABS (PWIS) standards. This unit incorporates G1/8 pneumatic connections for port 1/33, internal thread G1/8 for port 2, and G1/8 for port 3/11. Submit the exact part number, quantity, and application requirements to receive a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 525214
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 525214.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Sub-base mounting type: With through-hole
Pneumatic valve mounting type: With internal thread
Pneumatic connection 1/33: G1/8
Pneumatic connection 2: Internal thread G1/8
Pneumatic connection 3/11: G1/8
Material of sub-base: Die-cast zinc

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 525214. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
