Festo
525222

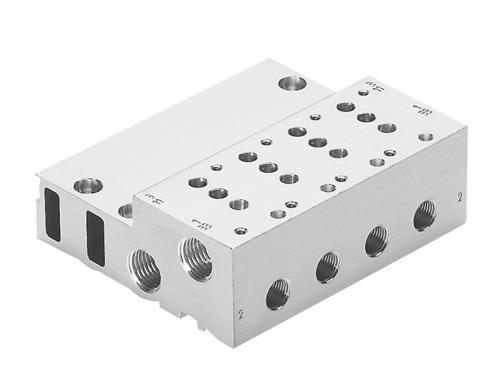

Manifold MHA3-PR4-3-1/8
The Festo 525222 is an industrial component featuring a wrought aluminum alloy sub-base with a maximum of 4 valve positions and a corrosion resistance class of CRC 2 for moderate corrosion stress. It incorporates VDMA24364-B1/B2-L LABS conformity, sub-base mounting via through-hole or DIN rail, and internal threads for pneumatic valve mounting. Pneumatic connections 1/33 and 3/11 utilize G1/4 threads, while connection 2 utilizes an internal thread G1/8. Request a formal quote by submitting the exact part number, required quantity, and application specifications.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 525222
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 525222.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Max. no. of valve positions
- 4
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Sub-base mounting type
- With through-hole | With DIN rail
- Pneumatic valve mounting type
- With internal thread
- Pneumatic connection 1/33
- G1/4
- Pneumatic connection 2
- Internal thread G1/8
- Pneumatic connection 3/11
- G1/4
- Material of sub-base
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 525222. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
