Festo
525223

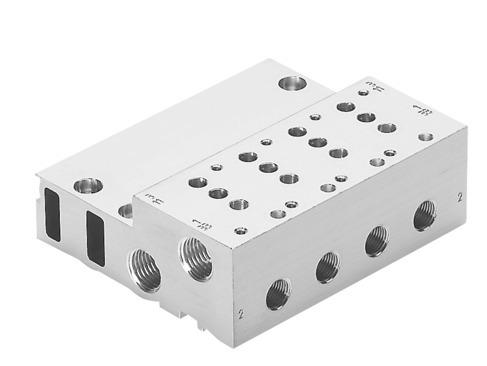

Manifold MHA3-PR6-3-1/8
This Festo industrial component, part number 525223, is a wrought aluminum alloy sub-base designed to accommodate a maximum of six valve positions. It features a corrosion resistance class of CRC 2 for moderate corrosion stress, LABS conformity under VDMA24364-B1/B2-L, and supports both through-hole and DIN rail sub-base mounting types with internal thread pneumatic valve mounting. Pneumatic connections include G1/4 for ports 1/33 and 3/11, alongside internal thread G1/8 for port 2. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 525223
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 525223.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Max. no. of valve positions
- 6
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Sub-base mounting type
- With through-hole | With DIN rail
- Pneumatic valve mounting type
- With internal thread
- Pneumatic connection 1/33
- G1/4
- Pneumatic connection 2
- Internal thread G1/8
- Pneumatic connection 3/11
- G1/4
- Material of sub-base
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 525223. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
