Festo
525236

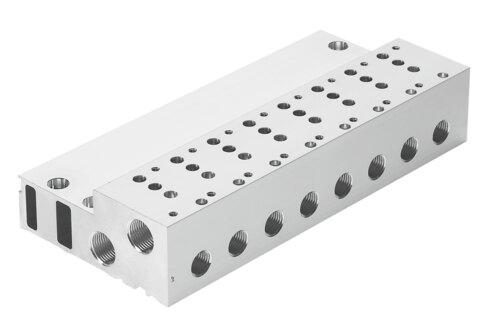

Manifold MHA4-PR6-3-1/4
The Festo 525236 is an industrial component featuring a wrought aluminum alloy sub-base with a corrosion resistance class of CRC 2 for moderate corrosion stress and VDMA24364-B1/B2-L LABS conformity. Weighing 1080 g, this unit accommodates a maximum of six valve positions and supports mounting via through-hole, DIN rail, or internal thread for pneumatic valves. It includes G3/8 pneumatic connections for ports 1/33 and 3/11, alongside internal thread G1/4 connections for port 2. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 525236
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 525236.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Max. no. of valve positions
- 6
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Product weight
- 1080 g
- Sub-base mounting type
- With through-hole | With DIN rail
- Pneumatic valve mounting type
- With internal thread
- Pneumatic connection 1/33
- G3/8
- Pneumatic connection 2
- Internal thread G1/4
- Pneumatic connection 3/11
- G3/8
- Material of sub-base
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 525236. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
