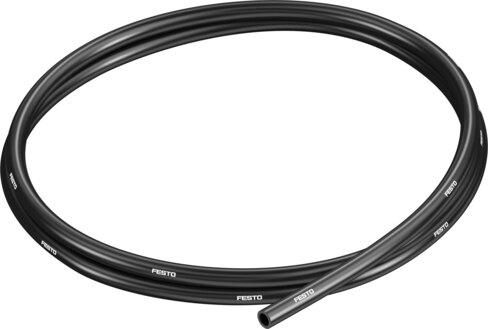

Name: Festo 525438 Plastic tubing PUN-V0-6X1-SW
Brand: Festo

Plastic tubing PUN-V0-6X1-SW

The Festo part number 525438 is a black industrial component featuring an outside diameter of 6 mm, an inside diameter of 4 mm, and a weight of 0.02 kg/m with a Shore hardness of D 54 +/-3. This TÜV-certified component operates with compressed air as per ISO 8573-1:2010 [7:-:-] and liquid water, maintaining an operating pressure of -0.095 MPa to 0.7 MPa across its full temperature range and up to 1 MPa depending on temperature. Suitable for energy chains, it features a minimum bending radius of 12 mm and a bending radius relevant for flow rate of 26.5 mm, alongside UL94 V-0 and UL94 V-2 fire test materials compliance. Please submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 525438
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 525438.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Outside diameter: 6 mm
Bending radius relevant for ow rate: 26.5 mm
Inside diameter: 4 mm
Min. bending radius: 12 mm
Tubing characteristics: Suitable for energy chains
Operating pressure for entire temperature range: -0.095 MPa...0.7 MPa | -0.95 bar...7 bar | -13.775 psi...101.5 psi
Temperature-dependent operating pressure: -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
Information on operating pressure: Water: max. 0.6 MPa at max. 50 °C
Certication: TÜV
Certicate issuing authority: B 013277 0527 00
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
Material re test: UL94 V-0 (3mm) | UL94 V-2 (0.75mm)
LABS (PWIS) conformity: VDMA24364-B2-L
Ambient temperature: -35 °C...60 °C
Note on ambient temperature: unpressurized use up to 90°C
Product weight by length: 0.02 kg/m
Pneumatic connection: For plug connection outside diameter 6 mm | For barbed tting, inside diameter 4 mm, with union nut | For barbed tting, inside diameter 4 mm
Color: Black
Information on color: Deviates from the standard color due to ame protection
Shore hardness: D 54 +/-3
Note on materials: RoHS compliant
Material of pneumatic tubing: TPE-U(PU)
