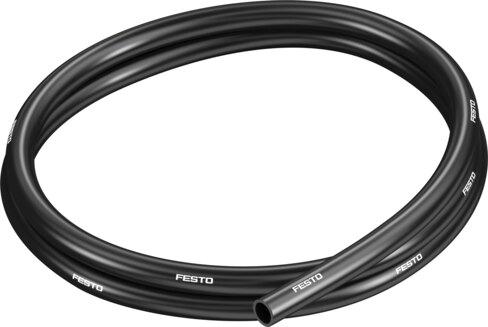

Name: Festo 525440 Plastic tubing PUN-V0-10X1,5-SW
Brand: Festo

Plastic tubing PUN-V0-10X1,5-SW

The Festo part number 525440 is an industrial component featuring a 10 mm outside diameter, a 7 mm inside diameter, and a D 54 +/-3 Shore hardness in a black color that deviates from standard options due to flame protection. This TÜV-certified component operates with compressed air as per ISO 8573-1:2010 [7:-:-] or liquid, ice-free water, handling an operating pressure of -0.95 bar to 10 bar depending on temperature and a maximum of 0.6 MPa for water at up to 50 °C. Designed with a minimum bending radius of 20 mm and a flow rate bending radius of 54 mm, it is suitable for energy chains within an ambient temperature range of -35 °C to 60 °C, or up to 90 °C unpressurized. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 525440
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 525440.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Outside diameter: 10 mm
Bending radius relevant for ow rate: 54 mm
Inside diameter: 7 mm
Min. bending radius: 20 mm
Tubing characteristics: Suitable for energy chains
Operating pressure for entire temperature range: -0.095 MPa...0.7 MPa | -0.95 bar...7 bar | -13.775 psi...101.5 psi
Temperature-dependent operating pressure: -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
Information on operating pressure: Water: max. 0.6 MPa at max. 50 °C
Certication: TÜV
Certicate issuing authority: B 013277 0527 00
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
Material re test: UL94 V-0 (3mm) | UL94 V-2 (0.75mm)
LABS (PWIS) conformity: VDMA24364-B2-L
Ambient temperature: -35 °C...60 °C
Note on ambient temperature: unpressurized use up to 90°C
Product weight by length: 0.051 kg/m
Pneumatic connection: For plug connection outside diameter 10 mm
Color: Black
Information on color: Deviates from the standard color due to ame protection
Shore hardness: D 54 +/-3
Note on materials: RoHS compliant
Material of pneumatic tubing: TPE-U(PU)
