525447

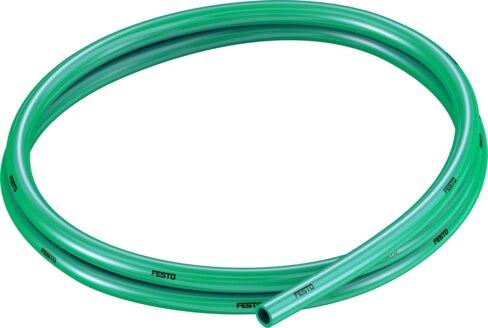

Name: Festo 525447 Plastic tubing PUN-V0-8X1,25-GN
Brand: Festo

Plastic tubing PUN-V0-8X1,25-GN

The Festo 525447 is an 8 mm outside diameter industrial component featuring an inside diameter of 5.7 mm, a shore hardness of D 54 +/-3, and a product weight of 0.031 kg/m. Certified by TÜV under authority B 013277 0527 00, this green tubing operates with compressed air per ISO 8573-1:2010 [7:-:-] or liquid water, maintaining a temperature-dependent operating pressure from -0.95 bar to 10 bar and an ambient temperature range of -35 °C to 60 °C. It is suitable for energy chains, provides a minimum bending radius of 18 mm alongside a 37 mm bending radius relevant for flow rate, and complies with UL94 V-0 (3mm) and UL94 V-2 (0.75mm) fire test materials standards. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 525447
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 525447.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Outside diameter: 8 mm
Bending radius relevant for ow rate: 37 mm
Inside diameter: 5.7 mm
Min. bending radius: 18 mm
Tubing characteristics: Suitable for energy chains
Operating pressure for entire temperature range: -0.095 MPa...0.7 MPa | -0.95 bar...7 bar | -13.775 psi...101.5 psi
Temperature-dependent operating pressure: -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
Information on operating pressure: Water: max. 0.6 MPa at max. 50 °C
Certication: TÜV
Certicate issuing authority: B 013277 0527 00
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
Material re test: UL94 V-0 (3mm) | UL94 V-2 (0.75mm)
LABS (PWIS) conformity: VDMA24364-B2-L
Ambient temperature: -35 °C...60 °C
Note on ambient temperature: unpressurized use up to 90°C
Product weight by length: 0.031 kg/m
Pneumatic connection: For plug connection outside diameter 8 mm | For barbed tting, inside diameter 6 mm, with union nut | For barbed tting, inside diameter 6 mm
Color: Green
Information on color: Deviates from the standard color due to ame protection
Shore hardness: D 54 +/-3
Note on materials: RoHS compliant
Material of pneumatic tubing: TPE-U(PU)

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 525447. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
