Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

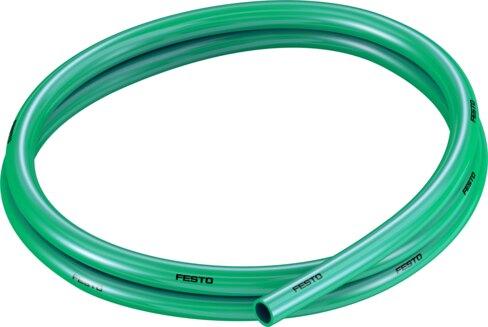

Reference imageConfirm configuration by manufacturer part number.
Festo
525448
Plastic tubing PUN-V0-10X1,5-GN
The Festo 525448 is a green industrial component tubing with a 10 mm outside diameter, a 7 mm inside diameter, and a 0.051 kg/m weight by length designed with a Shore hardness of D 54 +/-3 and a minimum bending radius of 20 mm. Certified by TÜV under certificate B 013277 0527 00, it features UL94 V-0 at 3mm and UL94 V-2 at 0.75mm material fire tests, VDMA24364-B2-L LABS conformity, and is suitable for energy chains with compressed air or water media. It operates across an ambient temperature range of -35 °C to 60 °C, with unpressurized use up to 90 °C, and maintains an operating pressure of -0.095 MPa to 0.7 MPa for the entire temperature range. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 525448
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 525448.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Outside diameter
- 10 mm
- Bending radius relevant for ow rate
- 54 mm
- Inside diameter
- 7 mm
- Min. bending radius
- 20 mm
- Tubing characteristics
- Suitable for energy chains
- Operating pressure for entire temperature range
- -0.095 MPa...0.7 MPa | -0.95 bar...7 bar | -13.775 psi...101.5 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Information on operating pressure
- Water: max. 0.6 MPa at max. 50 °C
- Certication
- TÜV
- Certicate issuing authority
- B 013277 0527 00
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Material re test
- UL94 V-0 (3mm) | UL94 V-2 (0.75mm)
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -35 °C...60 °C
- Note on ambient temperature
- unpressurized use up to 90°C
- Product weight by length
- 0.051 kg/m
- Pneumatic connection
- For plug connection outside diameter 10 mm
- Color
- Green
- Information on color
- Deviates from the standard color due to ame protection
- Shore hardness
- D 54 +/-3
- Note on materials
- RoHS compliant
- Material of pneumatic tubing
- TPE-U(PU)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 525448. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
