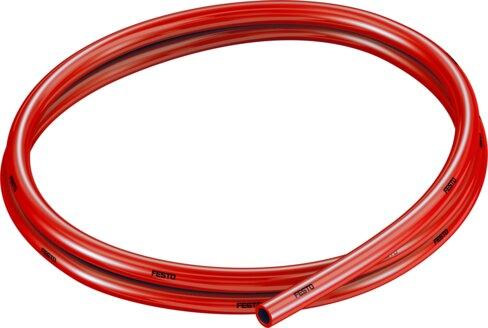

Reference imageConfirm configuration by manufacturer part number.
Festo
525451
Plastic tubing PUN-V0-8X1,25-RT
The Festo 525451 is an industrial component featuring an 8 mm outside diameter, a 5.7 mm inside diameter, and a D 54 +/-3 Shore hardness, engineered with red flame-protected material weighing 0.031 kg/m. It operates with compressed air or liquid water across an ambient temperature range of -35 °C to 60 °C and supports pressures from -0.095 MPa to 1 MPa depending on temperature, backed by TÜV certification under authority B 013277 0527 00 and VDMA24364-B2-L LABS conformity. This tubing accommodates energy chains with a minimum bending radius of 18 mm and a flow-relevant bending radius of 37 mm, connecting via plug connections for 8 mm outside diameters or barbed fittings for 6 mm inside diameters. Submit the exact part number, quantity, and application requirements for an official quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 525451
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 525451.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Outside diameter
- 8 mm
- Bending radius relevant for ow rate
- 37 mm
- Inside diameter
- 5.7 mm
- Min. bending radius
- 18 mm
- Tubing characteristics
- Suitable for energy chains
- Operating pressure for entire temperature range
- -0.095 MPa...0.7 MPa | -0.95 bar...7 bar | -13.775 psi...101.5 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Information on operating pressure
- Water: max. 0.6 MPa at max. 50 °C
- Certication
- TÜV
- Certicate issuing authority
- B 013277 0527 00
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Material re test
- UL94 V-0 (3mm) | UL94 V-2 (0.75mm)
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -35 °C...60 °C
- Note on ambient temperature
- unpressurized use up to 90°C
- Product weight by length
- 0.031 kg/m
- Pneumatic connection
- For plug connection outside diameter 8 mm | For barbed tting, inside diameter 6 mm, with union nut | For barbed tting, inside diameter 6 mm
- Color
- Red
- Information on color
- Deviates from the standard color due to ame protection
- Shore hardness
- D 54 +/-3
- Note on materials
- RoHS compliant
- Material of pneumatic tubing
- TPE-U(PU)
