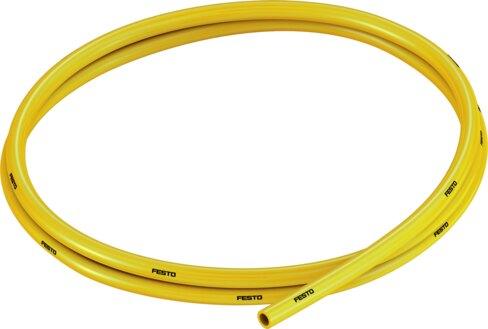

Reference imageConfirm configuration by manufacturer part number.
Festo
525458
Plastic tubing PUN-V0-6X1-GE
The Festo part number 525458 is a yellow industrial component with a 6 mm outside diameter, a 4 mm inside diameter, and a D 54 +/-3 Shore hardness, weighing 0.02 kg/m and featuring TÜV certification (certificate B 013277 0527 00). It operates with compressed air or liquid water within a temperature-dependent pressure range of -0.095 MPa to 1 MPa and an ambient temperature range of -35 °C to 60 °C, while meeting UL94 V-0 (3mm) and UL94 V-2 (0.75mm) fire test materials standards alongside VDMA24364-B2-L LABS conformity. This tubing is suitable for energy chains, maintaining a 12 mm minimum bending radius and a 26.5 mm bending radius relevant for flow rate, with pneumatic connections designed for a 6 mm outside diameter plug connection or a 4 mm inside diameter barbed fitting. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 525458
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 525458.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Outside diameter
- 6 mm
- Bending radius relevant for ow rate
- 26.5 mm
- Inside diameter
- 4 mm
- Min. bending radius
- 12 mm
- Tubing characteristics
- Suitable for energy chains
- Operating pressure for entire temperature range
- -0.095 MPa...0.7 MPa | -0.95 bar...7 bar | -13.775 psi...101.5 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Information on operating pressure
- Water: max. 0.6 MPa at max. 50 °C
- Certication
- TÜV
- Certicate issuing authority
- B 013277 0527 00
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Material re test
- UL94 V-0 (3mm) | UL94 V-2 (0.75mm)
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -35 °C...60 °C
- Note on ambient temperature
- unpressurized use up to 90°C
- Product weight by length
- 0.02 kg/m
- Pneumatic connection
- For plug connection outside diameter 6 mm | For barbed tting, inside diameter 4 mm, with union nut | For barbed tting, inside diameter 4 mm
- Color
- Yellow
- Information on color
- Deviates from the standard color due to ame protection
- Shore hardness
- D 54 +/-3
- Note on materials
- RoHS compliant
- Material of pneumatic tubing
- TPE-U(PU)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 525458. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
