Festo
5255536
Servo motor EMMT-AS-100-L-HS-RSB
This Festo industrial component, part number 5255536, conforms to IEC 60034 with a thermal class of F and rating class S1 according to EN 60034-1. The unit features digital motor temperature transmission via EnDat® 2.2, a balancing quality of G 2.5, and a detent torque under 1.0% of peak torque, supporting mounting positions IM B5, IM V1, and IM V3. Operation is rated for ambient temperatures from -40 °C to 40 °C—or up to 80 °C with a -2.25% per degree Celsius derating—at installation heights up to 4000 m, providing IP40 protection for the motor shaft without a rotary shaft seal, IP65 with a seal, and IP67 for the housing including connection technology. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 5255536
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 5255536.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Ambient temperature
- -40 °C...40 °C
- Note on ambient temperature
- Up to 80 °C with derating of -2.25% per degree Celsius
- Max. installation height
- 4000 m
- Information on max. installation height
- with 1,000 m and longer only with derating of -1.0% per 100 m
- Storage temperature
- -40 °C...70 °C
- Relative air humidity
- 0 - 90%
- Conforms to standard
- IEC 60034
- Thermal class according to EN 60034-1
- F
- Max. winding temperature
- 155 °C
- Rating class according to EN 60034-1
- S1
- Temperature monitoring
- Digital motor temperature transmission via EnDat® 2.2
- Motor type as per EN 60034-7
- IM B5 | IM V1 | IM V3
- Mounting position
- Any
- Degree of protection
- IP40
- Note on degree of protection
- IP40 for motor shaft without rotary shaft seal | IP65 for motor shaft with rotary shaft seal | IP67 for motor housing, incl. connection technology
- Concentricity, coaxiality, axial runout according to DIN SPEC 42955
- N
- Balancing quality
- G 2.5
- Detent torque
- <1.0% of peak torque
- Bearing lifetime, under nominal conditions
- 20000 h
- Interface code, motor out
- 100A

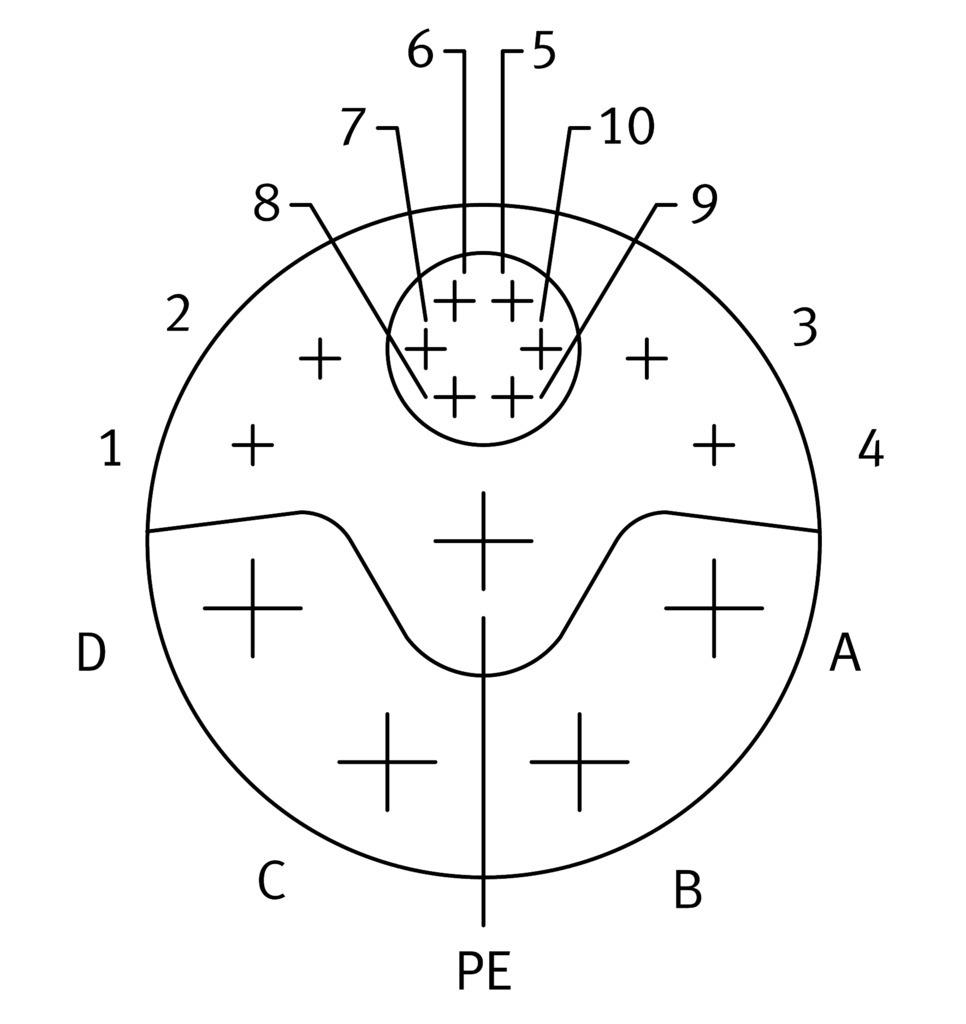

- Electrical connection 1, connection type
- Hybrid plug
- Electrical connection 1, connection technology
- M23x1
- Electrical connection 1, number of pins/wires
- 15
- Contamination level
- 2
- Note on materials
- RoHS compliant
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 5255536. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
