Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas+1 417 261 6001 info@mropartsrfq.com

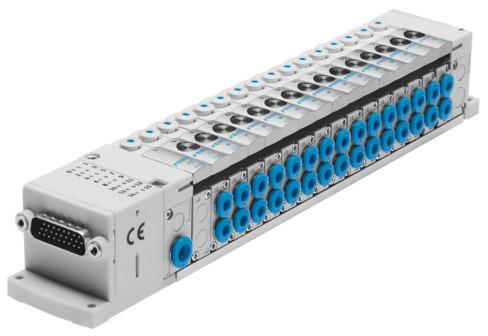

Reference imageConfirm configuration by manufacturer part number.
Festo
525675
Valve manifold CPV-SC-MP-VI
Festo Valve manifold CPV-SC-MP-VI, part number 525675, is documented in the official Festo United States product data sheet. Review the technical specifications and operating conditions below when requesting a quotation.
Request pricing and availabilityCommercial response for your destination and required quantity.
Request a Quote- Manufacturer
- Festo
- Part number
- 525675
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 525675.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationTechnical documents are stored and served from our system.
Verified configuration
Technical Specifications
Identification and family-level technical context are preserved from reviewed source evidence and official English-language manufacturer documentation.
- Electrical actuation
- CPI installation system | Individual connection | Multi-pin
- Electrical I/O system
- Yes
- Valve terminal type
- 80
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Temperature of medium
- -5 °C...50 °C
- Ambient temperature
- -5 °C...50 °C
- Degree of protection
- IP40
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- Operating pressure
- -0.09 MPa...0.7 MPa | -0.9 bar...7 bar
- Pilot pressure MPa
- 0.3 MPa...0.7 MPa
- Pilot pressure
- 3 bar...7 bar
- Operating pressure for valve manifold with internal pilot air supply
- 0.3 MPa...0.7 MPa | 3 bar...7 bar
- LABS (PWIS) conformity
- VDMA24364-B2-L
- CE marking (see declaration of conformity)
- As per EU EMC directive
- KC characters
- KC-EMV
- Certication
- c UL us - recognized (OL)
- Note on materials
- RoHS compliant
- Valve manifold design
- Fixed grid
- Max. no. of valve positions
- 16
- Max. no. of pressure zones
- 8
- Actuation type
- Electrical
- Valve function
- 2/2-way, closed, monostable | 3/2-way, closed, monostable | 3/2-way, monostable, open | 5/2-way, bistable | 5/2-way, monostable
- Structural design
- Piston gate valve
- Valve size
- 10 mm
- Pilot air supply port
- External
Technical library
Documents and Data Sheets
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 525675. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
