Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
525680

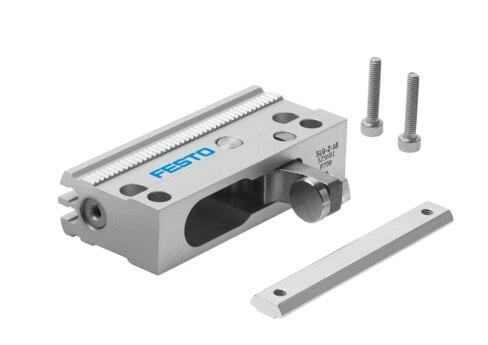

Intermediate position attachment SLG-Z-8/12-A
The Festo part number 525680 is a stop as rotary actuator system utilizing the rack-and-pinion structural design, featuring position sensing via proximity switch and an operating pressure range of 1 bar to 8 bar with compressed air as per ISO 8573-1:2010 [7:-:-]. This component weighs 33.5 g, operates within an ambient temperature of -10 °C to 60 °C, allows mounting in any position with a through-hole and dowel pin, and includes an M3 pneumatic connection alongside a corrosion resistance class of 2 for moderate corrosion stress. Constructed with a hard-anodized aluminum housing, nickel-plated steel stops, and PUR seals, it supports oil lubrication operation which is required for further use, and conforms to VDMA24364-B2-L LABS (PWIS) standards. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 525680
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 525680.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Structural design
- Stop as rotary actuator system according to the rack-and-pinion | principle
- Position sensing
- Via proximity switch
- Operating pressure
- 1 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 33.5 g
- Type of mounting
- With through-hole and dowel pin
- Pneumatic connection
- M3
- Stops material
- Steel, nickel-plated
- Seals material
- PUR
- Housing material
- Aluminum | Hard-anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 525680. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
