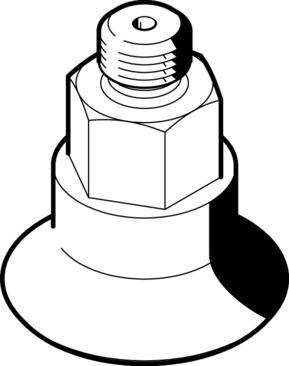

Reference imageConfirm configuration by manufacturer part number.
Festo
525972
Vacuum suction cup ESS-40-GT-M6
The Festo part number 525972 is a round, deep size 4 industrial component weighing 14 g with a reddish brown suction cup diameter of 40 mm and a suction cup volume of 5.4 cm³. Designed with an M6 vacuum connection for mounting via vacuum connection in any position, it delivers a holding force of 64 N and a lateral force of 20 N at a nominal operating pressure of -0.7 bar within an operating pressure range of -0.95 bar to 0 bar. This component features a nominal width of 2.5 mm, a suction cup holder height compensator of 5.5 mm, a minimum workpiece radius of 35 mm, an ambient temperature range of -10 °C to 80 °C, and operates using atmospheric air based on ISO 8573-1:2010 [7:-:-] while maintaining moderation corrosion resistance class 2 and VDMA24364-A1-L LABS conformity. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 525972
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 525972.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Suction cup holder height compensator
- 5.5 mm
- Min. workpiece radius
- 35 mm
- Nominal width
- 2.5 mm
- Suction cup diameter
- 40 mm
- Suction cup volume
- 5.4 cm³
- Mounting position
- Any
- Classication of suction cup holder
- Size 4
- Suction cup shape
- Round, deep
- Operating pressure
- -0.95 bar...0 bar
- Nominal operating pressure
- -0.7 bar
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-A1-L
- Ambient temperature
- -10 °C...80 °C
- Holding force at nominal operating pressure
- 64 N
- Lateral force at nominal operating pressure
- 20 N
- Product weight
- 14 g
- Type of mounting
- Via vacuum connection
- Vacuum connection
- M6
- Color
- Reddish brown
- Shore hardness
- 72 +/-5
- Material of screwed plug
- Wrought aluminum alloy
- Note on materials
- RoHS compliant
- Suction cup material
- VULKOLLAN
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 525972. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
