Festo
525979

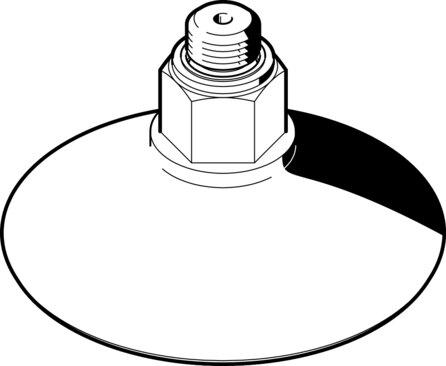

Vacuum suction cup ESS-50-GT-G1/4
The Festo 525979 is a round, deep industrial component featuring a 50 mm suction cup diameter, 11.2 cm³ suction cup volume, and an 8 mm height compensator with a 72 +/-5 Shore hardness in reddish brown. Operating at a nominal operating pressure of -0.7 bar within a range of -0.95 bar to 0 bar, it delivers a holding force of 97 N and a lateral force of 30 N using atmospheric air based on ISO 8573-1:2010 [7:-:-]. This 21 g unit is mountable in any position via its G1/4 vacuum connection and features a nominal width of 2.5 mm, a minimum workpiece radius of 40 mm, moderate corrosion resistance class 2, and VDMA24364-A1-L LABS conformity for ambient temperatures between -10 °C and 80 °C. Request a quote by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 525979
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 525979.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Suction cup holder height compensator
- 8 mm
- Min. workpiece radius
- 40 mm
- Nominal width
- 2.5 mm
- Suction cup diameter
- 50 mm
- Suction cup volume
- 11.2 cm³
- Mounting position
- Any
- Suction cup shape
- Round, deep
- Operating pressure
- -0.95 bar...0 bar
- Nominal operating pressure
- -0.7 bar
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-A1-L
- Ambient temperature
- -10 °C...80 °C
- Holding force at nominal operating pressure
- 97 N
- Lateral force at nominal operating pressure
- 30 N
- Product weight
- 21 g
- Type of mounting
- Via vacuum connection
- Vacuum connection
- G1/4
- Color
- Reddish brown
- Shore hardness
- 72 +/-5
- Material of screwed plug
- Wrought aluminum alloy
- Note on materials
- RoHS compliant
- Suction cup material
- VULKOLLAN
