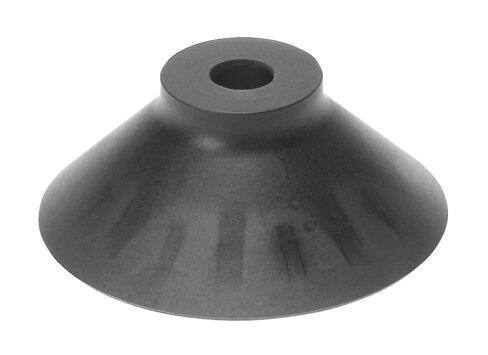

Reference imageConfirm configuration by manufacturer part number.
Festo
526002
Vacuum cup without connector ESV-50-GT
The Festo 526002 is a round, bell-shaped industrial component featuring a 50 mm deep suction cup with an 8 mm height compensator and an 11.2 cm³ volume. Designed for operation within a -0.95 bar to 0 bar pressure range using atmospheric air compliant with ISO 8573-1:2010 [7:-:-], this 9.2 g RoHS-compliant part delivers a 97 N breakaway and holding force alongside a 30 N lateral force at its -0.7 bar nominal operating pressure. Featuring a reddish brown 72 +/-5 Shore hardness construction with VDMA24364-A1-L LABS conformity, it mounts via vacuum connection in any position and accommodates workpieces with a minimum radius of 40 mm across ambient temperatures from -10 °C to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation from Festo.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 526002
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 526002.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Suction cup holder height compensator
- 8 mm
- Min. workpiece radius
- 40 mm
- Suction cup diameter
- 50 mm
- Suction cup volume
- 11.2 cm³
- Mounting position
- Any
- Structural design
- Round, bell-shaped
- Suction cup shape
- Round, deep
- Operating pressure
- -0.95 bar...0 bar
- Nominal operating pressure
- -0.7 bar
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- LABS (PWIS) conformity
- VDMA24364-A1-L
- Ambient temperature
- -10 °C...80 °C
- Breakaway force at 70% vacuum
- 97 N
- Holding force at nominal operating pressure
- 97 N
- Lateral force at nominal operating pressure
- 30 N
- Product weight
- 9.2 g
- Type of mounting
- Via vacuum connection
- Color
- Reddish brown
- Shore hardness
- 72 +/-5
- Note on materials
- RoHS compliant
- Suction cup material
- VULKOLLAN
