Festo
526007

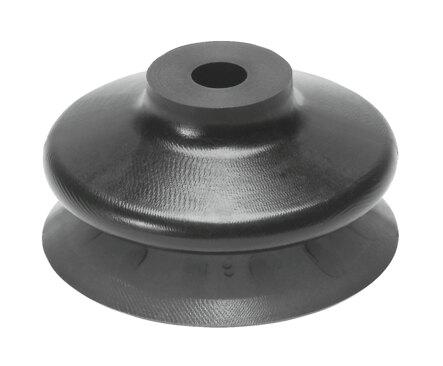

Vacuum cup without connector ESV-50-BT
This Festo industrial component features a 50 mm round protective bellows 1.5-fold suction cup with a 10 mm height compensator, designed for a minimum workpiece radius of 40 mm and a suction cup volume of 17.6 cm³. Operating at a nominal pressure of -0.7 bar within a range of -0.95 bar to 0 bar, the unit delivers a holding force and breakaway force of 100 N alongside a lateral force of 39 N using atmospheric air based on ISO 8573-1:2010 [7:-:-]. Constructed with a reddish brown color, a shore hardness of 72 +/-5, and a product weight of 16.2 g, it supports mounting in any position via vacuum connection and complies with VDMA24364-A1-L LABS conformity and RoHS material directives across an ambient temperature range of -10 °C to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 526007
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 526007.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Suction cup holder height compensator
- 10 mm
- Min. workpiece radius
- 40 mm
- Suction cup diameter
- 50 mm
- Suction cup volume
- 17.6 cm³
- Mounting position
- Any
- Structural design
- Protective bellows
- Suction cup shape
- round protective bellows 1.5-fold
- Operating pressure
- -0.95 bar...0 bar
- Nominal operating pressure
- -0.7 bar
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- LABS (PWIS) conformity
- VDMA24364-A1-L
- Ambient temperature
- -10 °C...80 °C
- Breakaway force at 70% vacuum
- 100 N
- Holding force at nominal operating pressure
- 100 N
- Lateral force at nominal operating pressure
- 39 N
- Product weight
- 16.2 g
- Type of mounting
- Via vacuum connection
- Color
- Reddish brown
- Shore hardness
- 72 +/-5
- Note on materials
- RoHS compliant
- Suction cup material
- VULKOLLAN
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 526007. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
