Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

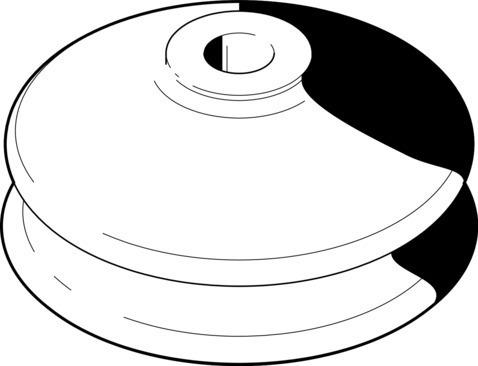

Reference imageConfirm configuration by manufacturer part number.
Festo
526008
Vacuum cup without connector ESV-80-BT
Engineered with a 10.5 mm height compensator and a round 1.5-fold protective bellows shape, this Festo industrial component features an 80 mm suction cup diameter with a 59.1 cm³ volume. It operates within a -0.95 bar to 0 bar pressure range using atmospheric air based on ISO 8573-1:2010 [7:-:-], delivering a holding and breakaway force of 237 N at its -0.7 bar nominal operating pressure alongside a 102 N lateral force. The unit weighs 57.2 g, incorporates a 72 +/-5 Shore hardness in reddish brown, conforms to VDMA24364-A1-L LABS (PWIS), and mounts via vacuum connection for an ambient temperature range of -10 °C to 80 °C. Submit the exact part number, quantity, and application requirements for an immediate quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 526008
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 526008.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Suction cup holder height compensator
- 10.5 mm
- Min. workpiece radius
- 100 mm
- Suction cup diameter
- 80 mm
- Suction cup volume
- 59.1 cm³
- Mounting position
- Any
- Structural design
- Protective bellows
- Suction cup shape
- round protective bellows 1.5-fold
- Operating pressure
- -0.95 bar...0 bar
- Nominal operating pressure
- -0.7 bar
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- LABS (PWIS) conformity
- VDMA24364-A1-L
- Ambient temperature
- -10 °C...80 °C
- Breakaway force at 70% vacuum
- 237 N
- Holding force at nominal operating pressure
- 237 N
- Lateral force at nominal operating pressure
- 102 N
- Product weight
- 57.2 g
- Type of mounting
- Via vacuum connection
- Color
- Reddish brown
- Shore hardness
- 72 +/-5
- Note on materials
- RoHS compliant
- Suction cup material
- VULKOLLAN
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 526008. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
