Festo
526065

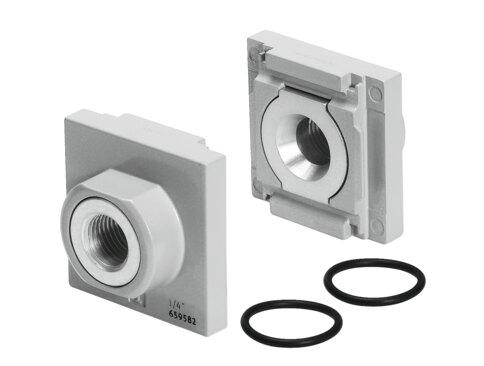

Sub-base-SET MS4N-AQK
The Festo 526065 is an industrial component from the MS series featuring a size 4 build with a die-cast aluminum sub-base and NBR seals. It operates within a medium temperature range of -10 °C to 60 °C and includes 1/8 NPT pneumatic connections on both port 1 and port 2, maintaining a total product weight of 128 g. This RoHS compliant part adheres to VDMA24364-B1/B2-L LABS conformity and provides a corrosion resistance class (CRC) of 2 for moderate corrosion stress. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 526065
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 526065.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 4
- Series
- MS
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -10 °C...60 °C
- Product weight
- 128 g
- Pneumatic connection 1
- 1/8 NPT
- Pneumatic connection 2
- 1/8 NPT
- Note on materials
- RoHS compliant
- Material of sub-base
- Die-cast aluminum
- Seals material
- NBR
