Festo
526097

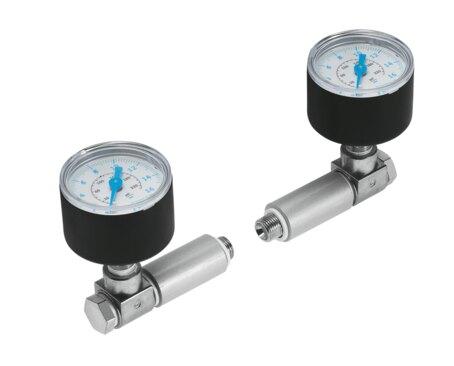

Pressure gauge kit DPA-63-16-MA-SET
The Festo 526097 is a Bourdon tube pressure gauge featuring a nominal size of 40 and an external thread mounting design with a G1/8 pneumatic connection. Operating at a pressure of 16 bar within an ambient temperature range of 5 °C to 60 °C, this 250 g component conforms to EN 837-1 with a measurement accuracy class of 2.5 and an IP43 degree of protection. Additional specifications include RoHS compliance, VDMA24364-B1/B2-L LABS conformity, and an unrestricted mounting position. Submit the exact part number, quantity, and application requirements to request a formal quote for this item.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 526097
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 526097.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Conforms to standard
- EN 837-1
- Pressure gauge nominal size
- 40
- Structural design
- Bourdon tube pressure gauge
- Type of mounting
- With external thread
- Operating pressure
- 16 bar
- Measurement accuracy class
- 2.5
- Degree of protection
- IP43
- Ambient temperature
- 5 °C...60 °C
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Note on materials
- RoHS compliant
- Mounting position
- Any
- Pneumatic connection
- G1/8
- Product weight
- 250 g
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 526097. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
