Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

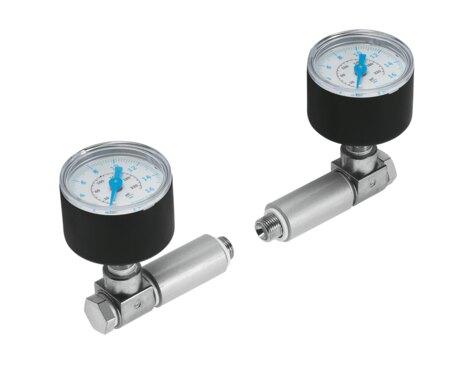

Reference imageConfirm configuration by manufacturer part number.
Festo
526099
Pressure gauge kit DPA-100-16-MA-SET
The Festo 526099 is a Bourdon tube pressure gauge with a nominal size of 40 and external thread mounting, featuring a G1/4 pneumatic connection and an operating pressure of 16 bar. This component conforms to EN 837-1, provides a measurement accuracy class of 2.5, features an IP43 degree of protection, and maintains LABS conformity under VDMA24364-B1/B2-L within an ambient temperature range of 5 °C to 60 °C. Designed for any mounting position, the unit has a product weight of 305 g. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 526099
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 526099.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Conforms to standard
- EN 837-1
- Pressure gauge nominal size
- 40
- Structural design
- Bourdon tube pressure gauge
- Type of mounting
- With external thread
- Operating pressure
- 16 bar
- Measurement accuracy class
- 2.5
- Degree of protection
- IP43
- Ambient temperature
- 5 °C...60 °C
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Mounting position
- Any
- Pneumatic connection
- G1/4
- Product weight
- 305 g
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 526099. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
