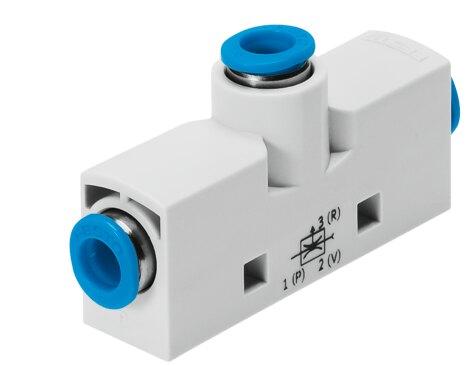

Reference imageConfirm configuration by manufacturer part number.
Festo
526107
Vacuum generator VN-07-M-T2-PQ1-VQ1-RQ1
The Festo part number 526107 is a T-shaped industrial component featuring an inline ejector design with a 0.7 mm Laval nozzle width and a 10 mm width dimension. This unit delivers a maximum vacuum of 86 percent, a maximum suction rate of 13.5 l/min with respect to the atmosphere, and operates within a pressure range of 1 bar to 8 bar using compressed air as per ISO 8573-1:2010 [7:4:4]. Weighing 15 g with a CRC rating of 1, it functions in medium and ambient temperatures ranging from 0 °C to 60 °C without oil lubrication. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 526107
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 526107.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width of Laval nozzle
- 0.7 mm
- Width dimension
- 10 mm
- Mounting position
- Any
- Ejector characteristics
- High vacuum | Inline
- Structural design
- T-shape
- Operating pressure for max. suction rate
- 7 bar
- Operating pressure
- 1 bar...8 bar
- Operating pressure for max. vacuum
- 5.8 bar
- Max. vacuum
- 86 %
- Nominal operating pressure
- 6 bar
- Max. suction rate with respect to atmosphere
- 13.5 l/min
- Air supply time at nominal operating pressure
- 2.1 s
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- 0 °C...60 °C
- Ambient temperature
- 0 °C...60 °C
- Max. tightening torque
- 0.5 Nm
- Product weight
- 15 g
- Type of mounting
- With through-hole | With accessories
- Pneumatic connection 1
- QS-4
- Pneumatic connection 3
- QS-4
- Vacuum connection
- QS-4
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Female nozzle material
- POM
- Housing material
- Reinforced POM
- Material of jet nozzle
- Wrought aluminum alloy
- Material of pneumatic tting
- Brass
