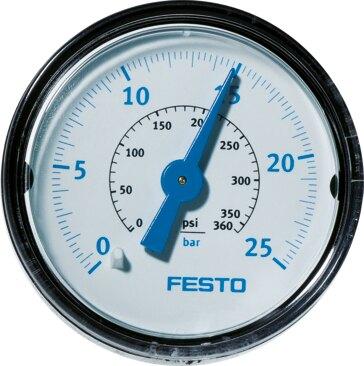

Reference imageConfirm configuration by manufacturer part number.
Festo
526167
Pressure gauge MA-40-25-1/8-EN
The Festo 526167 is a Bourdon tube pressure gauge featuring a nominal size of 40 and an in-line installation design with a G1/8 pneumatic connection centered on the rear side. This component conforms to EN 837-1 standard with a display and operating pressure range of 0 bar to 25 bar (0 psi to 362.5 psi), a measurement accuracy class of 2.5, and an IP43 degree of protection for use within ambient and medium temperatures of -20 °C to 60 °C. Constructed with brass media-contacting materials and a brass screwed plug, it operates with inert gases and neutral liquids under ATEX Zone 1, 2, 21, and 22 classifications while excluding oxygen and acetylene media. Submit the exact part number, quantity, and application requirements to request a quote for this industrial component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 526167
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 526167.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Display range
- 0 bar...25 bar | 0 psi...362.5 psi
- Conforms to standard
- EN 837-1
- Pressure gauge nominal size
- 40
- Explosion prevention and protection
- Observe the information on the certicate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Structural design
- Bourdon tube pressure gauge
- Type of mounting
- In-line installation
- Operating medium
- Inert gases | Neutral liquids
- Information on operating and pilot media
- No acetylene | No oxygen
- Operating pressure
- 0 MPa...2.5 MPa | 0 bar...25 bar | 0 psi...362.5 psi
- Intermittent load factor
- 0.66
- Measurement accuracy class
- 2.5
- Degree of protection
- IP43
- Temperature of medium
- -20 °C...60 °C
- Ambient temperature
- -20 °C...60 °C
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Note on materials
- RoHS compliant
- Connection position
- Centered on rear side
- Pneumatic connection
- G1/8
- Materials in contact with the media
- Brass
- Material of screwed plug
- Brass
- Housing material
- ABS
