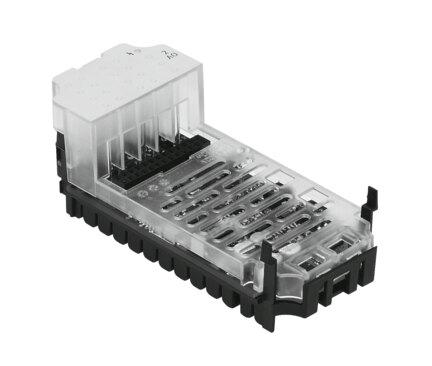

Reference imageConfirm configuration by manufacturer part number.
Festo
526170
Analogue module CPX-2AA-U-I
The Festo part number 526170 is a 49 g industrial component featuring dimensions of 50 mm by 107 mm by 50 mm including the interlinking block and connection system. It operates on a nominal DC voltage of 24 V within a range of 18 V to 30 V, exhibiting a typical intrinsic current consumption of 100 mA and an internal cycle time of 4 ms. Housing a PA-reinforced and PC construction with a CRC rating of 1, this unit includes 2 outputs, 1 group diagnostics, and a 12-bit plus sign data format scalable to 15 bits. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 526170
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 526170.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Dimensions W x L x H
- (incl. interlinking block and connection system) | 50 mm x 107 mm x 50 mm
- Product weight
- 49 g
- Ambient temperature
- -5 °C...50 °C
- Storage temperature
- -20 °C...70 °C
- Degree of protection
- Depending on terminal block
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress | (installed)
- Max. cable length
- 30 m | Shielded
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Housing material
- PA-reinforced | PC
- LED indicators
- 1 group diagnostics
- Diagnostics
- Wire break per channel | Limit value violation per channel | Output signal short circuit per channel | Actuator supply short circuit | Parameterization error | Undervoltage of outputs
- No. of outputs
- 2
- Parameterization
- Data format | Failsafe per channel | Forcing per channel | Limit value monitoring per channel | Idle mode per channel | Measured value smoothing | Signal range per channel | Response to short circuit | Wire break monitoring per channel
- Internal cycle time
- 4 ms
- DC operating voltage range
- 18 V...30 V
- Nominal operating voltage DC
- 24 V
- Intrinsic current consumption at nominal operating voltage
- Type. 100 mA
- Data format
- 12 bit + sign | Scalable to 15 bits
