Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

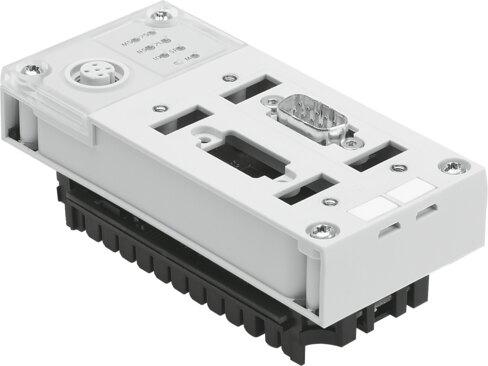

Reference imageConfirm configuration by manufacturer part number.
Festo
526172
Bus node CPX-FB11
The Festo 526172 is an industrial component supporting the DeviceNet protocol with a maximum address capacity of 64 bytes for both inputs and outputs across baud rates of 125, 250, and 500 kbps. Built with reinforced PA and PC housing measuring 50 mm x 107 mm x 50 mm with an interlinking block and weighing 120 g, this unit achieves IP65 and IP67 degrees of protection and a corrosion resistance class of CRC 1. It features extensive LED status displays, channel-oriented and module-oriented diagnostics, and a 9-pin Sub-D socket fieldbus interface operating within an ambient temperature range of -5 °C to 50 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 526172
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 526172.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Protocol
- DeviceNet
- Dimensions W x L x H
- (incl. interlinking block) | 50 mm x 107 mm x 50 mm
- Product weight
- 120 g
- Ambient temperature
- -5 °C...50 °C
- Storage temperature
- -20 °C...70 °C
- Degree of protection
- IP65 | IP67
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Housing material
- PA-reinforced | PC
- LED display (product-specic)
- M: Modify, parameterization | PL: Load supply | PS: electronics supply, sensor supply | SF: System fault
- LED display (bus-specic)
- IO: I/O status | MS: Module state | NS: Network status
- Device-specic diagnostics
- Channel-oriented and module-oriented diagnostics | Undervoltage of modules | Diagnostic memory
- Control elements
- DIL switch
- Fieldbus interface
- Sub-D socket, 9-pin | Customizable Sub-D plug | MicroStyle: 2x M12x1, 5-pin | Open style: terminal strip, 5-pin
- Max. address capacity inputs
- 64 byte
- Max. address capacity outputs
- 64 byte
- Parameterization
- Diagnostic behavior | Fail-safe response | forcing of channels | Idle mode performance | Signal setup | System Parameters
- Baud rate
- 125, 250, 500 kbps
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 526172. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
