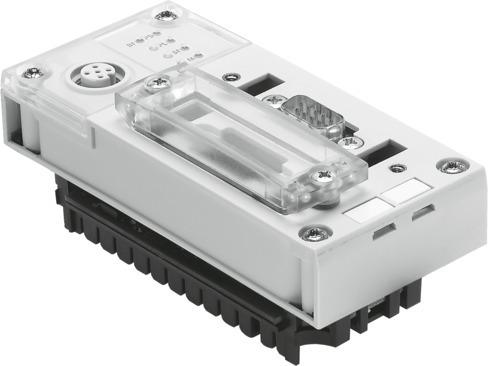

Reference imageConfirm configuration by manufacturer part number.
Festo
526174
Bus node CPX-FB14
The Festo 526174 is an industrial component supporting the CANopen protocol, featuring dimensions of 50 mm by 107 mm by 50 mm including the interlinking block and a product weight of 115 g. Constructed with a reinforced PA and PC housing, it provides IP65 and IP67 protection ratings, a CRC of 1, and VDMA24364-B2-L LABS conformity for ambient temperatures between -5 °C and 50 °C and storage between -20 °C and 70 °C. It includes product-specific and bus-specific LED displays, DIL switch control elements, channel-oriented and module-oriented diagnostics with diagnostic memory and undervoltage detection, and versatile fieldbus interfaces supporting baud rates from 125 to 1000 kbit/s with 32-byte max input and output address capacities configurable via EDS file. Please submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 526174
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 526174.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Protocol
- CANopen
- Dimensions W x L x H
- (incl. interlinking block) | 50 mm x 107 mm x 50 mm
- Product weight
- 115 g
- Ambient temperature
- -5 °C...50 °C
- Storage temperature
- -20 °C...70 °C
- Degree of protection
- IP65 | IP67
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Housing material
- PA-reinforced | PC
- LED display (product-specic)
- M: Modify, parameterization | PL: load supply | PS: electronics supply, sensor supply | SF: system fault
- LED display (bus-specic)
- IO: I/O status | MS: module status | NS: network status
- Device-specic diagnostics
- Channel-oriented and module-oriented diagnostics | Undervoltage of modules | Diagnostic memory
- Control elements
- DIL switch
- Fieldbus interface
- 2x M12x1, 5-pin | Sub-D socket, 9-pin | Terminal strip, 5-pin | Customizable Sub-D plug
- Max. address capacity inputs
- 32 byte
- Max. address capacity outputs
- 32 byte
- Parameterization
- Diagnostic behavior | Fail-safe response | forcing of channels | Signal setup | System parameter
- Baud rate
- 125, 250, 500 and 1000 kbit/s
- Conguration support
- EDS le
