Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas+1 417 261 6001 info@mropartsrfq.com

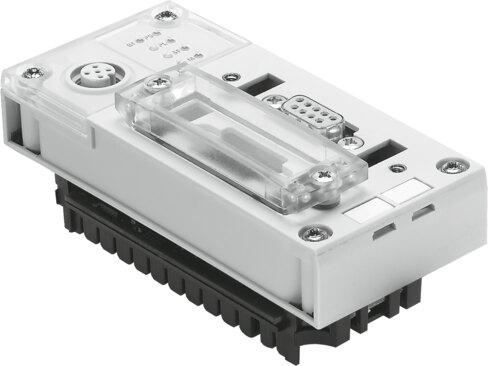

Reference imageConfirm configuration by manufacturer part number.
Festo
526176
Bus node CPX-FB23-24
Festo Bus node CPX-FB23-24, part number 526176, is documented in the official Festo United States product data sheet. Review the technical specifications and operating conditions below when requesting a quotation.
Request pricing and availabilityCommercial response for your destination and required quantity.
Request a Quote- Manufacturer
- Festo
- Part number
- 526176
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 526176.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationTechnical documents are stored and served from our system.
Verified configuration
Technical Specifications
Identification and family-level technical context are preserved from reviewed source evidence and official English-language manufacturer documentation.
- Protocol
- CC-LINK®
- Dimensions W x L x H
- (incl. interlinking block) | 50 mm x 107 mm x 50 mm
- Product weight
- 115 g
- Ambient temperature
- -5 °C...50 °C
- Storage temperature
- -20 °C...70 °C
- Degree of protection
- IP65 | IP67
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Housing material
- PA-reinforced | PC
- LED display (product-specic)
- M: Modify, parameterization | PL: Load supply | PS: electronics supply, sensor supply | SF: System fault
- LED display (bus-specic)
- Error: Communication error | RD: Receive data | Run: Communication status | SD: Send request
- Device-specic diagnostics
- Channel-oriented and module-oriented diagnostics | Undervoltage of modules | Diagnostic memory
- Control elements
- DIL switch
- Fieldbus interface
- Sub-D socket, 9-pin | Customizable Sub-D plug | Screw terminal strip, IP20
- Max. address capacity inputs
- 14 byte | 32 byte | 64 byte
- Information on inputs
- 14 bytes for Rx (F23) | 32 byte with RWr (F23) | 64 byte at Rx, RWr (F24)
- Max. address capacity outputs
- 14 byte | 32 byte | 64 byte
- Note on outputs
- 14 bytes for Ry (F23)
Technical library
Documents and Data Sheets
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 526176. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
