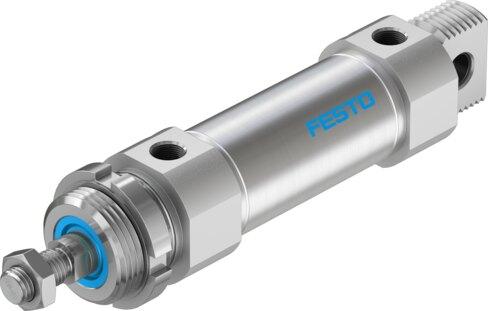

Reference imageConfirm configuration by manufacturer part number.
Festo
5262706
Round cylinder DSNU-40-60-PPV-A
This Festo industrial component features a 40 mm piston diameter and a 60 mm stroke operating with a double-acting mode on compressed air per ISO 8573-1:2010 [7:4:4]. The unit is built with an M12x1.25 piston rod thread, adjustable pneumatic cushioning at both ends, and position sensing via proximity switch across an operating pressure range of 1 bar to 10 bar. It delivers a moving mass of 326 g, a total product weight of 805 g, and theoretical forces of 633.3 N retracting and 752.9 N advancing at 6 bar. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 5262706
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 5262706.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 60 mm
- Piston diameter
- 40 mm
- Piston rod thread
- M12x1.25
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Structural design
- Piston | Piston rod | Cylinder barrel
- Position sensing
- Via proximity switch
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 0.7 J
- Cushioning length
- 18 mm
- Theoretical force at 6 bar, retracting
- 633.3 N
- Theoretical force at 6 bar, advancing
- 752.9 N
- Moving mass
- 326 g
- Product weight
- 805 g
- Type of mounting
- With accessories
- Pneumatic connection
- G1/4
- Note on materials
- RoHS compliant
- Cover material
- Wrought aluminum alloy
- Seals material
- NBR | TPE-U(PU)
- Piston rod material
- High-alloy steel
- Material of cylinder barrel
- high-alloy stainless steel
