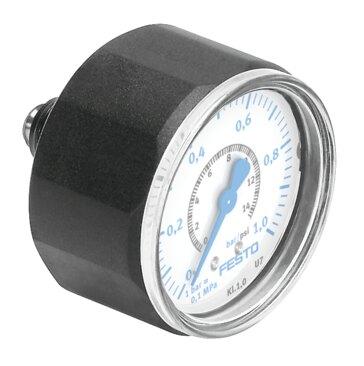

Reference imageConfirm configuration by manufacturer part number.
Festo
526324
Pressure gauge MA-27-1,0-M5-MPA
The Festo 526324 is a Bourdon tube pressure gauge featuring a nominal size of 27 and a display and operating pressure range of 0 MPa to 1 MPa, 0 bar to 10 bar, or 0 psi to 145 psi. Designed for in-line installation with a centered rear M5 pneumatic connection, this component incorporates a polyamide housing, brass screwed plug, and brass media-contacting materials suited for inert gases and neutral liquids within a 0 °C to 60 °C temperature range. It offers an IP43 degree of protection, a measurement accuracy class of 5, an intermittent load factor of 0.66, RoHS compliance, VDMA24364-B1/B2-L LABS conformity, and ATEX certification for zones 1, 2, 21, and 22 while prohibiting acetylene and oxygen media. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 526324
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 526324.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Display range
- 0 MPa...1 MPa
- Pressure gauge nominal size
- 27
- Explosion prevention and protection
- Observe the information on the certicate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Structural design
- Bourdon tube pressure gauge
- Type of mounting
- In-line installation
- Operating medium
- Inert gases | Neutral liquids
- Information on operating and pilot media
- No acetylene | No oxygen
- Operating pressure
- 0 MPa...1 MPa | 0 bar...10 bar | 0 psi...145 psi
- Intermittent load factor
- 0.66
- Measurement accuracy class
- 5
- Degree of protection
- IP43
- Temperature of medium
- 0 °C...60 °C
- Ambient temperature
- 0 °C...60 °C
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Note on materials
- RoHS compliant
- Connection position
- Centered on rear side
- Pneumatic connection
- M5
- Materials in contact with the media
- Brass
- Material of screwed plug
- Brass
- Housing material
- PA
- Inspection window material
- PS
- Housing colour
- Black
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 526324. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
