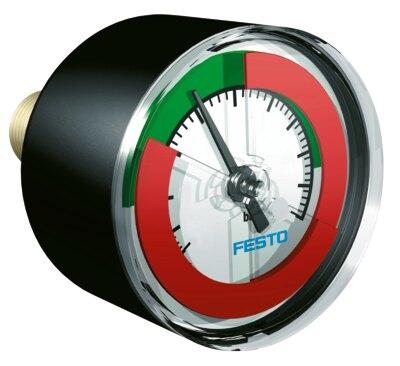

Reference imageConfirm configuration by manufacturer part number.
Festo
526780
Pressure gauge MA-50-0,25-R1/4-MPA-E-RG
The Festo 526780 is a Bourdon tube pressure gauge featuring a nominal size of 50, an in-line installation design, and a centered rear R1/4 pneumatic connection. Operating within a 0 MPa to 0.25 MPa range (0 bar to 2.5 bar, 0 psi to 36.25 psi), this EN 837-1 compliant component accommodates inert gases and neutral liquids via brass media-contacting parts and a brass screwed plug, while offering IP43 protection for ambient and medium temperatures between -20 °C and 60 °C. Designed for measurement accuracy class 2.5 with a 0.66 intermittent load factor, the unit supports ATEX Zone 1, 2, 21, and 22 explosion prevention requirements and adheres to RoHS and VDMA24364-B1/B2-L LABS conformity standards. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 526780
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 526780.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Display range
- 0 MPa...0.25 MPa
- Conforms to standard
- EN 837-1
- Pressure gauge nominal size
- 50
- Explosion prevention and protection
- Observe the information on the certicate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Structural design
- Bourdon tube pressure gauge
- Type of mounting
- In-line installation
- Operating medium
- Inert gases | Neutral liquids
- Information on operating and pilot media
- No acetylene | No oxygen
- Operating pressure
- 0 MPa...0.25 MPa | 0 bar...2.5 bar | 0 psi...36.25 psi
- Intermittent load factor
- 0.66
- Measurement accuracy class
- 2.5
- Degree of protection
- IP43
- Temperature of medium
- -20 °C...60 °C
- Ambient temperature
- -20 °C...60 °C
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Note on materials
- RoHS compliant
- Connection position
- Centered on rear side
- Pneumatic connection
- R1/4
- Materials in contact with the media
- Brass
- Material of screwed plug
- Brass
- Housing material
- ABS
- Inspection window material
- PMMA
