Festo
526787

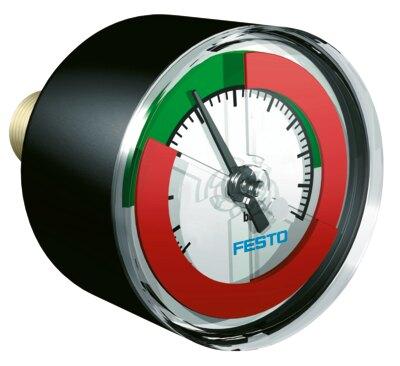

Pressure gauge MA-40-232-R1/8-PSI-E-RG
The Festo 526787 is a Bourdon tube pressure gauge featuring a nominal size of 40 and an in-line installation design with a centered rear R1/8 pneumatic connection. Conforming to EN 837-1, this component delivers a display range and operating pressure of 0 psi to 232 psi (0 bar to 16 bar, 0 MPa to 1.6 MPa) with a measurement accuracy class of 2.5 and an IP43 degree of protection. Constructed with brass media-contacting materials and a brass screwed plug, the unit operates with neutral liquids and inert gases within a medium and ambient temperature range of -20 °C to 60 °C, excluding acetylene and oxygen. ATEX certification permits deployment in Zone 1, Zone 2, Zone 21, and Zone 22 hazardous areas while observing the provided documentation. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 526787
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 526787.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Display range
- 0 psi...232 psi
- Conforms to standard
- EN 837-1
- Pressure gauge nominal size
- 40
- Explosion prevention and protection
- Observe the information on the certicate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Structural design
- Bourdon tube pressure gauge
- Type of mounting
- In-line installation
- Operating medium
- Inert gases | Neutral liquids
- Information on operating and pilot media
- No acetylene | No oxygen
- Operating pressure
- 0 MPa...1.6 MPa | 0 bar...16 bar | 0 psi...232 psi
- Intermittent load factor
- 0.66
- Measurement accuracy class
- 2.5
- Degree of protection
- IP43
- Temperature of medium
- -20 °C...60 °C
- Ambient temperature
- -20 °C...60 °C
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Note on materials
- RoHS compliant
- Connection position
- Centered on rear side
- Pneumatic connection
- R1/8
- Materials in contact with the media
- Brass
- Material of screwed plug
- Brass
- Housing material
- ABS
- Inspection window material
- PMMA
