Festo
526898

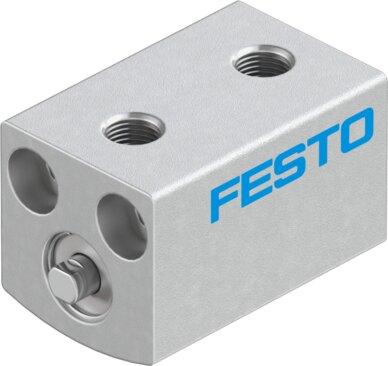

Short-stroke cylinder ADVC-4-5-P
The Festo part number 526898 is a double-acting industrial component featuring a 4 mm piston diameter and a 5 mm stroke, utilizing elastic cushioning rings at both ends and operating on compressed air within a pressure range of 2 bar to 8 bar. This piston-and-rod assembly delivers a moving mass of 0.25 g, a product weight of 4.2 g, and theoretical forces of 5.7 N retracting and 7.5 N advancing at 6 bar. It accommodates any mounting position through-hole or accessory installation, connects via an M3 pneumatic port, and functions within ambient temperatures from -20 °C to 80 °C with oil lubrication required for continued use. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 526898
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 526898.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 5 mm
- Piston diameter
- 4 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston | Piston rod
- Position sensing
- None
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar | 29 psi...116 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Theoretical force at 6 bar, retracting
- 5.7 N
- Theoretical force at 6 bar, advancing
- 7.5 N
- Moving mass
- 0.25 g
- Product weight
- 4.2 g
- Type of mounting
- Alternatively: | With through-hole | With accessories
- Pneumatic connection
- M3
- Note on materials
- RoHS compliant
- Cover material
- Wrought aluminum alloy | Anodized
- Seals material
- HNBR | NBR
- Housing material
- Wrought aluminum alloy | Anodized
- Piston rod material
- Wrought aluminum alloy | Anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 526898. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
